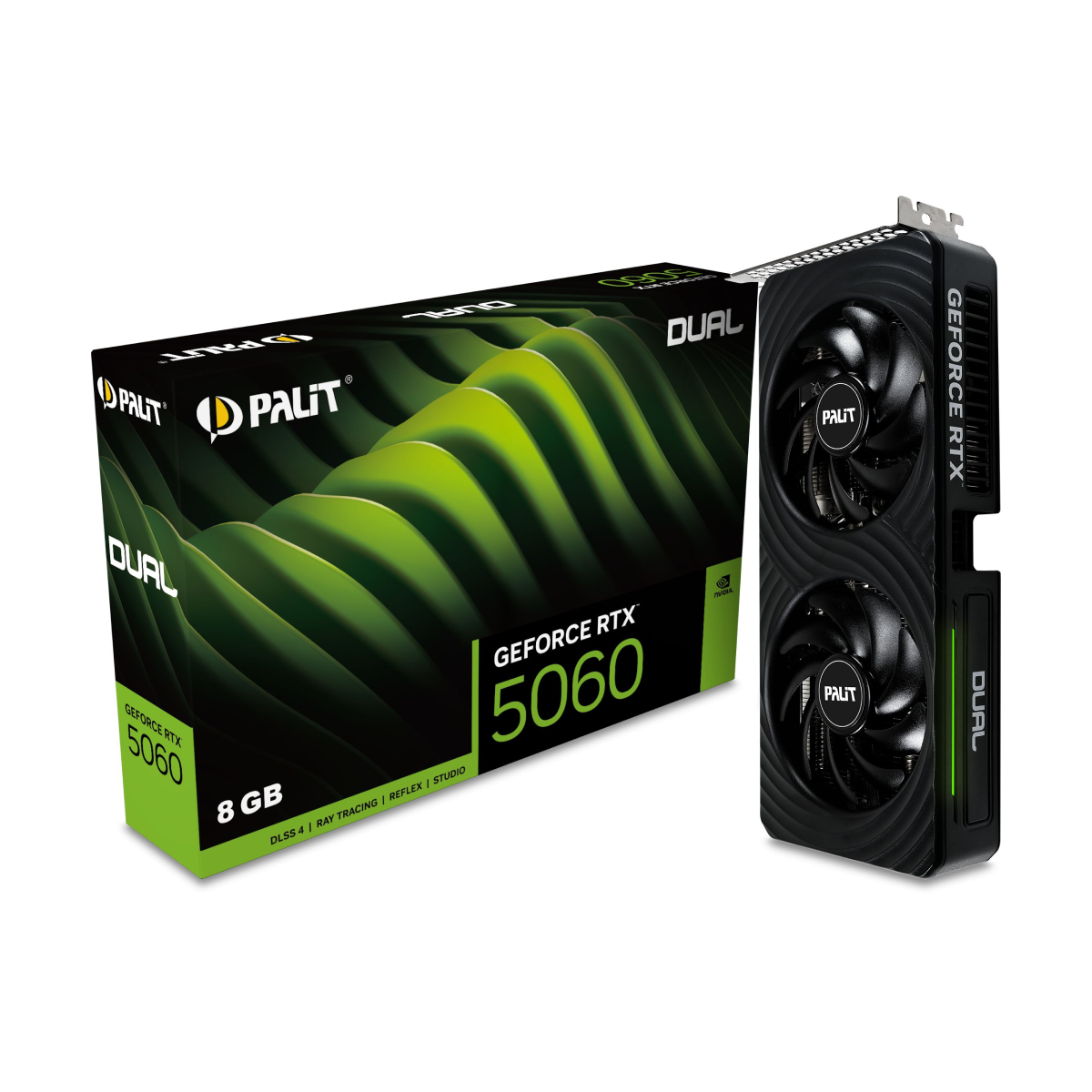

Palit NVIDIA GeForce RTX 5060 Dual 8GB GDDR7
Key Specs
| GPU Model | NVIDIA GeForce RTX 5060 Dual |
|---|---|
| Stream Processors | 3840 CUDA Cores |
| Dedicated AI Cores | Yes, 5th‑gen Tensor Cores |
| Interface | PCI Express 5.0 x16 |
| Video RAM | 8 GB GDDR7 |
| Video Output | 3x DisplayPort 2.1b 1x HDMI 2.1b |
| Power Connection | 1x 8‑Pin PCIe |
| Recommended System Power Requirement | 550 W |
| GPU Width | Dual‑slot |
GPU
| GPU Model | NVIDIA GeForce RTX 5060 Dual (GB206) |
|---|---|
| Stream Processors | 3840 CUDA Cores |
| Clock Speed | Base: 2280 MHz Boost: 2497 MHz |
| Dedicated AI Cores | Yes, 4th‑gen RT + 5th‑gen Tensor |
| Interface | PCI Express 5.0 x16 (electrically x8) |
| Supported APIs | DirectX 12 Ultimate, OpenGL 4.6, Vulkan 1.4 |
Memory
| Video RAM | 8 GB GDDR7 |
|---|---|
| Memory Speed | 28 Gbps |
| Memory Interface Width | 128‑Bit |
Display Support
| Video Output | 3x DisplayPort 2.1b 1x HDMI 2.1b |
|---|---|
| Max Resolution | Up to 7680×4320 @120 Hz |
Power Requirements
| Power Connection | 1x 8‑Pin PCIe |
|---|---|
| TDP | 145 W |
| Recommended System Power Requirement | 550 W |
Compatibility
| Expansion Slot Compatibility | Full‑Height, Dual‑Slot |
|---|---|
| Height | 126 mm |
| Length | 262 mm |
| GPU Width | Dual‑slot |
| OS Compatibility | Windows 10/11 |
General
| Cooler Type | Twin 95 mm axial fans, backplate, subtle RGB |
|---|
Packaging Info
| Package Weight | 1.685 lb |
|---|---|
| Box Dimensions (LxWxH) | 12.3 x 8.5 x 2.1" |
Identifiers
| MPN | NE75060019P1-GB2063D |
|---|---|
| GTIN / EAN / UPC | 4710562245363, 4710562245363 |
