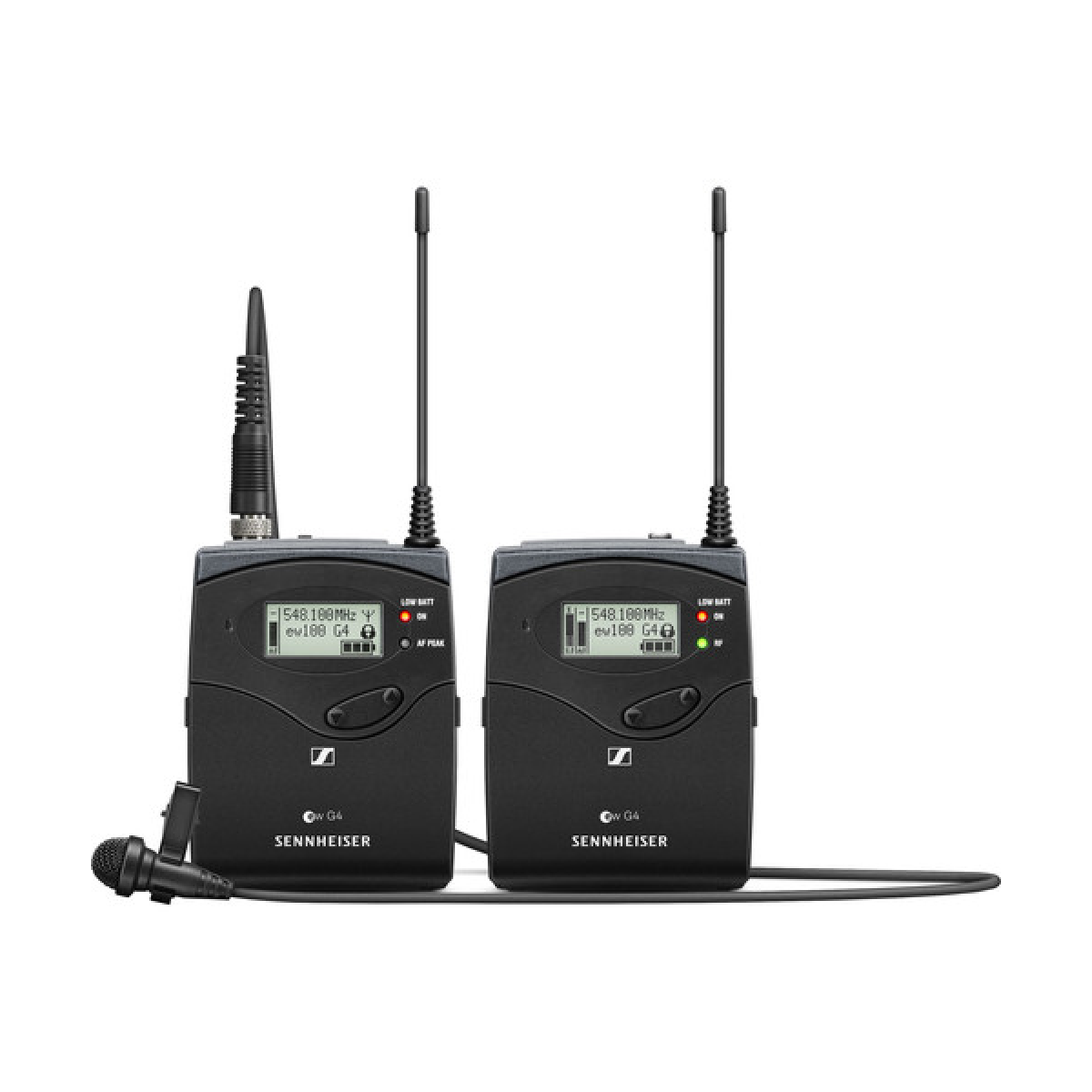

Sennheiser EW 112P G4 Camera-Mount Microphone System Wireless Band G 566-608 MHz
Key Specs
| Wireless Technology | Analog UHF |
|---|---|
| Diversity | Yes |
| Max Operating Range | 330' / 100.6 m (Line of Sight) |
| Receiver Type | 1x Camera-Mount |
| Number of Audio Channels | 1 |
| Included Transmitters | 1x Bodypack |
| Microphone Type | 1x Lavalier |
| Included Charging Case | No |
System
| Wireless Technology | Analog UHF |
|---|---|
| Diversity | Yes |
| RF Frequency Band | G: 566 to 608 MHz |
| Number of RF Channel Frequencies | 1680 |
| Max Operating Range | 330' / 100.6 m (Line of Sight) |
| Max Transmitters per Band | 12 |
| Encryption | No |
| Built-In Recorder | No |
| Timecode Support | No |
| Mobile App Compatible | No |
Receiver
| Receiver Type | 1x Camera-Mount |
|---|---|
| Mounting Options | Shoe-Mount (with Included Hardware) |
| Antenna | 1x Fixed Flexible Whip |
| Number of Audio Channels | 1 |
| Audio I/O | 1x 1/8" / 3.5 mm Locking TRS Unbalanced Output |
| Network I/O | No |
| USB/Lightning Connectivity | No |
| Gain Range | 42 dB (6 dB Steps) |
| Display | Backlit LCD |
| Power Requirements | Battery |
Transmitters
| Included Transmitters | 1x Bodypack |
|---|---|
| RF Output Power | 30 mW |
| Antenna | Fixed Flexible Whip |
| Input Level | Microphone / Instrument / Line |
| Audio I/O | 1x 1/8" / 3.5 mm Locking TRS Female Input |
| USB I/O | No |
| Muting | Mute Switch |
| Gain Range | 60 dB (3 dB Steps) |
| Auto-Level/Gain | No |
| Frequency Response | 80 Hz to 18 kHz (Mic) 25 Hz to 18 kHz (Line) |
| Sync Method | IR |
| Display | Backlit LCD |
Microphones
| Microphone Type | 1x Lavalier |
|---|---|
| Polar Pattern | Omnidirectional |
| Frequency Response | 50 Hz to 18 kHz |
| Maximum SPL | 130 dB |
| Sensitivity | 20 mV/Pa |
| Output Connector | 1x 1/8" / 3.5 mm Locking TRS Male |
| Cable Length | 5.25' / 1.6 m |
| Color | Black |
Power
| Receiver Battery Type | 2x AA (Included) or 1x Sennheiser Battery Pack (Not Included) |
|---|---|
| Receiver Battery Life | 8 Hours (Alkaline) |
| Transmitter Battery Type | 2x AA (Included) or 1x Sennheiser Battery Pack (Not Included) |
| Transmitter Battery Life | 8 Hours (Alkaline) |
| Included Charging Case | No |
| Input Power | 3 VDC at 180 mA |
Physical
| Housing | Metal |
|---|---|
| Dimensions | Receiver: 2.5 x 3.2 x 0.9" / 64 x 82 x 24 mm Transmitter: 2.5 x 3.2 x 0.9" / 64 x 82 x 24 mm |
| Weight | Receiver: 5.6 oz / 160 g (with Batteries) Transmitter: 5.6 oz / 160 g (with Batteries) Microphone: Not Specified |
Packaging Info
| Package Weight | 1.8 lb |
|---|---|
| Box Dimensions (LxWxH) | 16.1 x 6.9 x 3.1" |
Identifiers
| MPN | EW 112P G4-G |
|---|---|
| GTIN / EAN / UPC | 4044155261592 |
