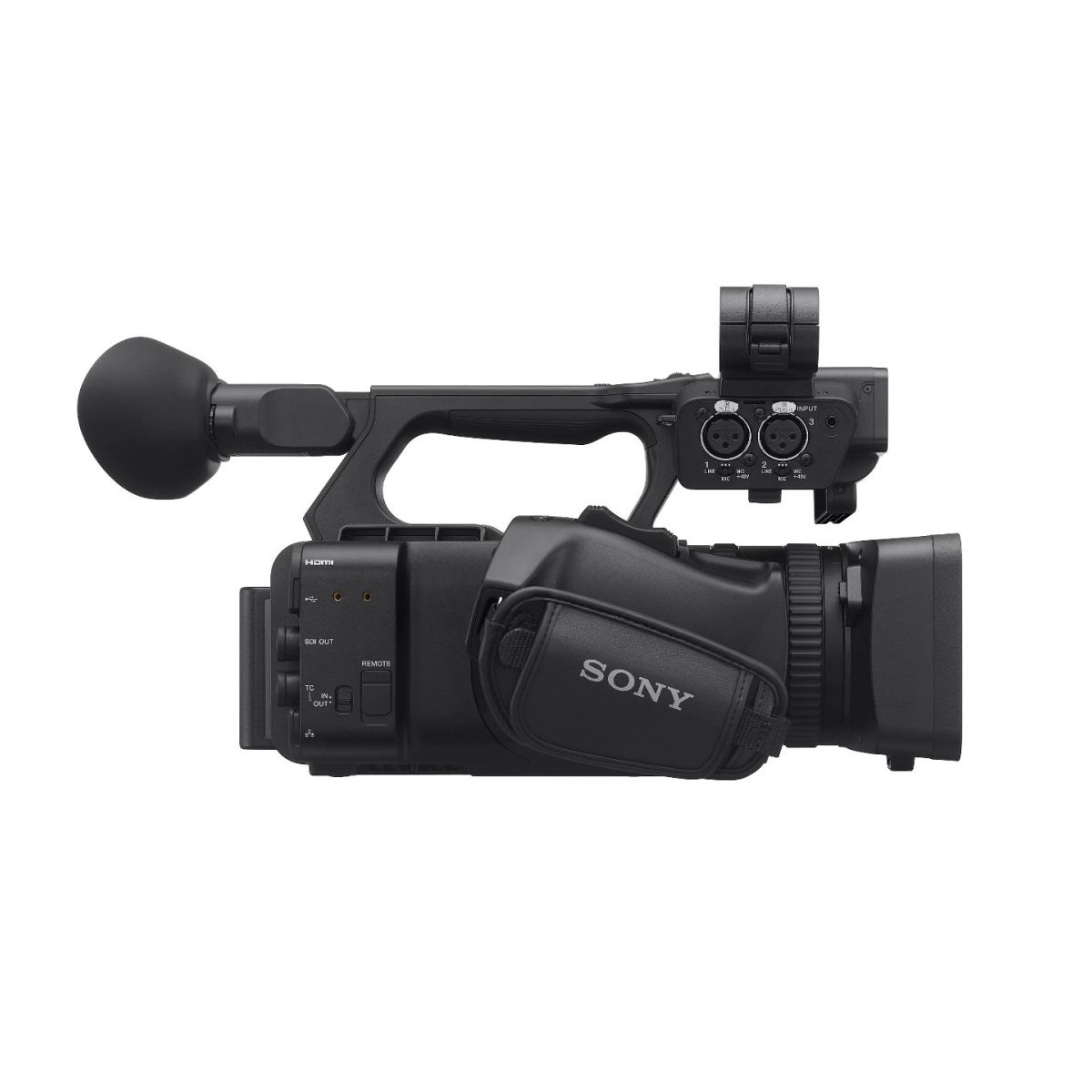

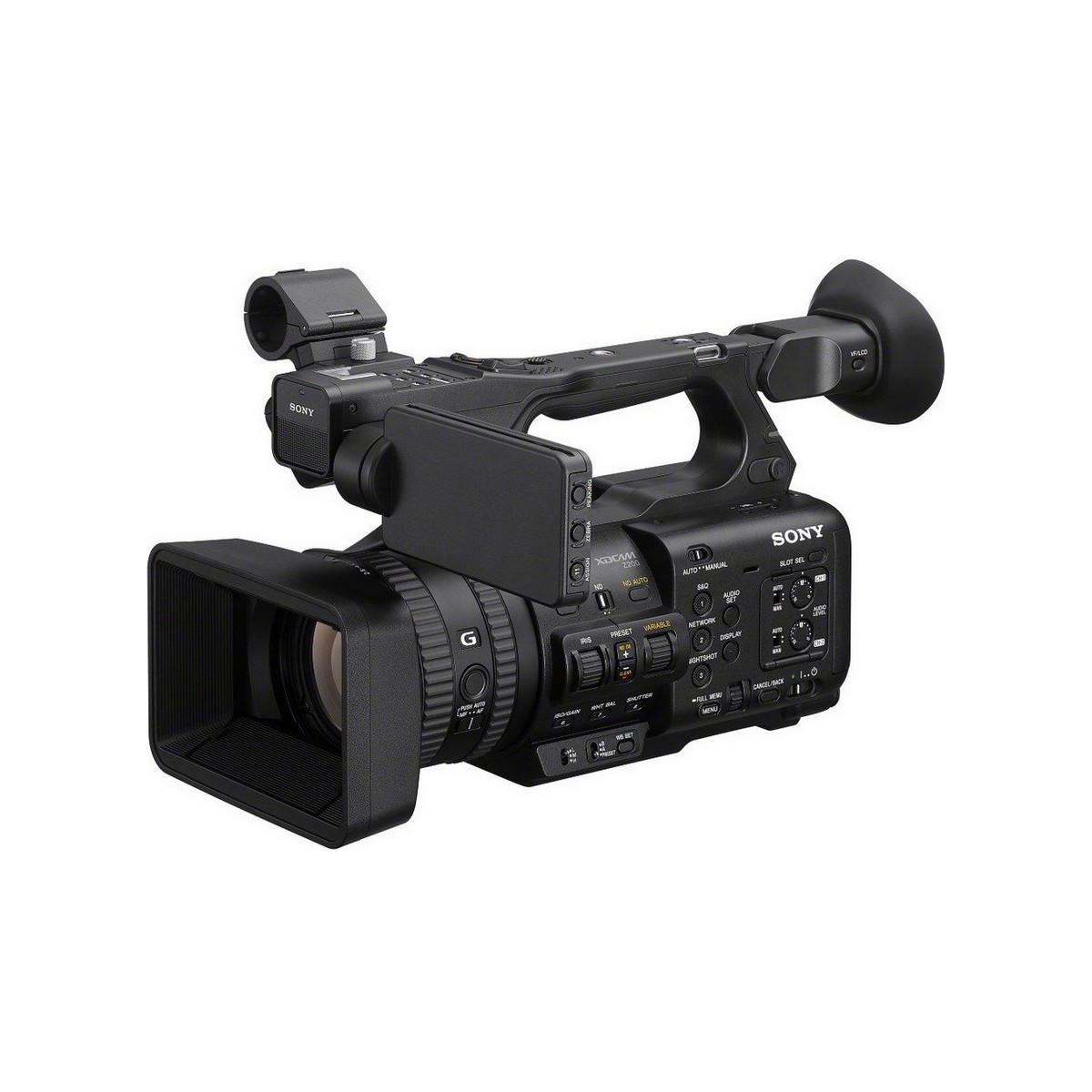

Sony PXW-Z200 4K 1″ CMOS Sensor XDCAM Camcorder

Name: Sony PXW-Z200 4K 1" CMOS Sensor XDCAM Camcorder
Brand: Sony
SKU: PXWZ200
Price: 3670.83 EUR
Availability: OutOfStock

✔ Single 1″ Exmor RS CMOS Sensor
✔ 12G-SDI Out, up to UHD 4K60 HDR with HLG
✔ 2.4/5 GHz Live Streaming, Timecode I/O
✔ AI-Powered Autofocus & Auto-Framing

3670,83€

Price includes 21% VAT

Out of stock

Description

Sony PXW-Z200 4K 1" CMOS Sensor XDCAM Camcorder

Imaging

Sensor Resolution	Actual: 20.9 Megapixel Effective: 14 Megapixel
Image Sensor	13.2 x 8.8 mm (1"-Type) CMOS
Image Stabilization	Optical in Integrated Lens Digital
Built-In ND Filter	2 to 7 Stop Electronic ND Filter
Capture Type	Video Only

Exposure Control

Shutter Type	Electronic Rolling Shutter
Shutter Speed	1/8000 to 64 Seconds
ISO/Gain Sensitivity	Native: 250 to 16,000 to Gain: -3 to 36 dB to dB
Shutter Angle	5.6 to 360°
Minimum Illumination	1.2 Lux
White Balance	Range: 2000 to 15,000K Presets: ATW, Auto

Lens

Focal Length	7.71 to 154.21mm (35mm Equivalent: 24 to 480mm)
Optical Zoom Ratio	20x
Max Digital Zoom	1.5x ( in UHD 4K) 2x ( in 1080p)
Maximum Aperture	f/2.8 to 4.5
Minimum Focus Distance	0.4" / 1.0 cm
Filter Size	72 mm
Focus Control	Autofocus Manual Focus

Video Capture

Internal Recording Modes	XAVC HS-L 3840 x 2160 at 23.98/50/59.94/100/120 fps [30 to 280 Mb/s] XAVC S-I 3840 x 2160 at 23.98/25/29.97/50/59.94 fps [240 to 600 Mb/s] 1920 x 1080p at 23.98/25/29.97/50/59.94/100/120/150/180/200 fps XAVC S-L 3840 x 2160 at 23.98/25/29.97/50/59.94/100/120 fps [100 to 280 Mb/s] 1920 x 1080p at 23.98/25/29.97/50/59.94/100/120/150/180/200/240 fps
External Recording Modes	HDMI 3840 x 2160 at 23.98/25/29.97/50/59.94/100/120 fps 1920 x 1080p at 23.98/25/29.97/50/59.94/100/120 fps 1920 x 1080i at 25/29.97/50/59.94/100/120 fps SDI/BNC 3840 x 2160 at 23.98/25/29.97/50/59.94/100/120 fps 1920 x 1080p at 23.98/25/29.97/50/59.94/100/120 fps 1920 x 1080i at 50/59.94/100/120 fps 1920 x 1080PsF at 23.98/25/29.97 fps
Fast-/Slow-Motion Support	Yes
Gamma Curve	HDR-HLG, Rec709, S Cinetone, Sony S-Log 3
Built-In Microphone	Stereo
Audio Recording	4-Channel 24-Bit 48 kHz LPCM Audio
IP Streaming	H.264, H.265, RTMP, RTMPS, SRT 3840 x 2160 at 50p, 59.94p (38.00 Mb/s) 3840 x 2160 at 23.98p, 25p, 29.97p (13.00 to 38.00 Mb/s) 1920 x 1080 at 50p, 59.94p (4.5 to 27.00 Mb/s) 1920 x 1080 at 23.98p, 25p, 29.97p (3.0 to 18.00 Mb/s) 1280 x 720 at 50p, 59.94p (2.3 to 13.5 Mb/s) 1280 x 720 at 23.98p, 25p, 29.97p (1.5 to 9.0 Mb/s)

Interface

Media/Memory Card Slot	Dual Slot: CFexpress Type A / SD (UHS-II)
Video I/O	1x BNC (12G-SDI) Output 1x HDMI (Unspecified Signal) Output
Audio I/O	2x XLR 3-Pin Input 1x 1/8" / 3.5 mm TRRS Headphone/Mic Headphone Output 1x 1/8" / 3.5 mm TRS Stereo Input
Power I/O	1x USB-C
Other I/O	1x BNC (Timecode) Input/Output 1x 2.5 mm Sub-Mini (Remote) Control 1x RJ45 (LAN) Control 1x USB-C (USB 3.2 / 3.1 Gen 1)
Wireless	2.4 / 5 GHz Wi-Fi 5 (802.11ac)
Mobile App Compatible	Yes: Android & iOS
Global Positioning (GPS, GLONASS, etc.)	No

Monitor

Display Type	Primary Monitor: Articulating 3.5" Touchscreen LCD

Viewfinder

Type	Electronic

Focus

Focus Mode	Automatic, Manual Focus
Autofocus Points	Phase Detection: 475

Power

Battery Type	Sony BP-U Series
Power Consumption	20 W

Environmental

Operating Conditions	32 to 104°F / 0 to 40°C
Storage Conditions	-4 to 140°F / -20 to 60°C

General

Shoe Mount	1x Intelligent Hot Shoe
Dimensions (W x H x D)	6.9 x 7.9 x 14.63" / 175.6 x 201.3 x 371.6 mm
Weight	4.32 lb / 1.96 kg (Body Only)

Packaging Info

Package Weight	10.28 lb / 4.66 kg
Box Dimensions (LxWxH)	18.9 x 11.6 x 11" / 47.33 x 29.05 x 27.54 cm

Identifiers

MPN	PXW-Z200
GTIN / EAN / UPC	4548736163997
