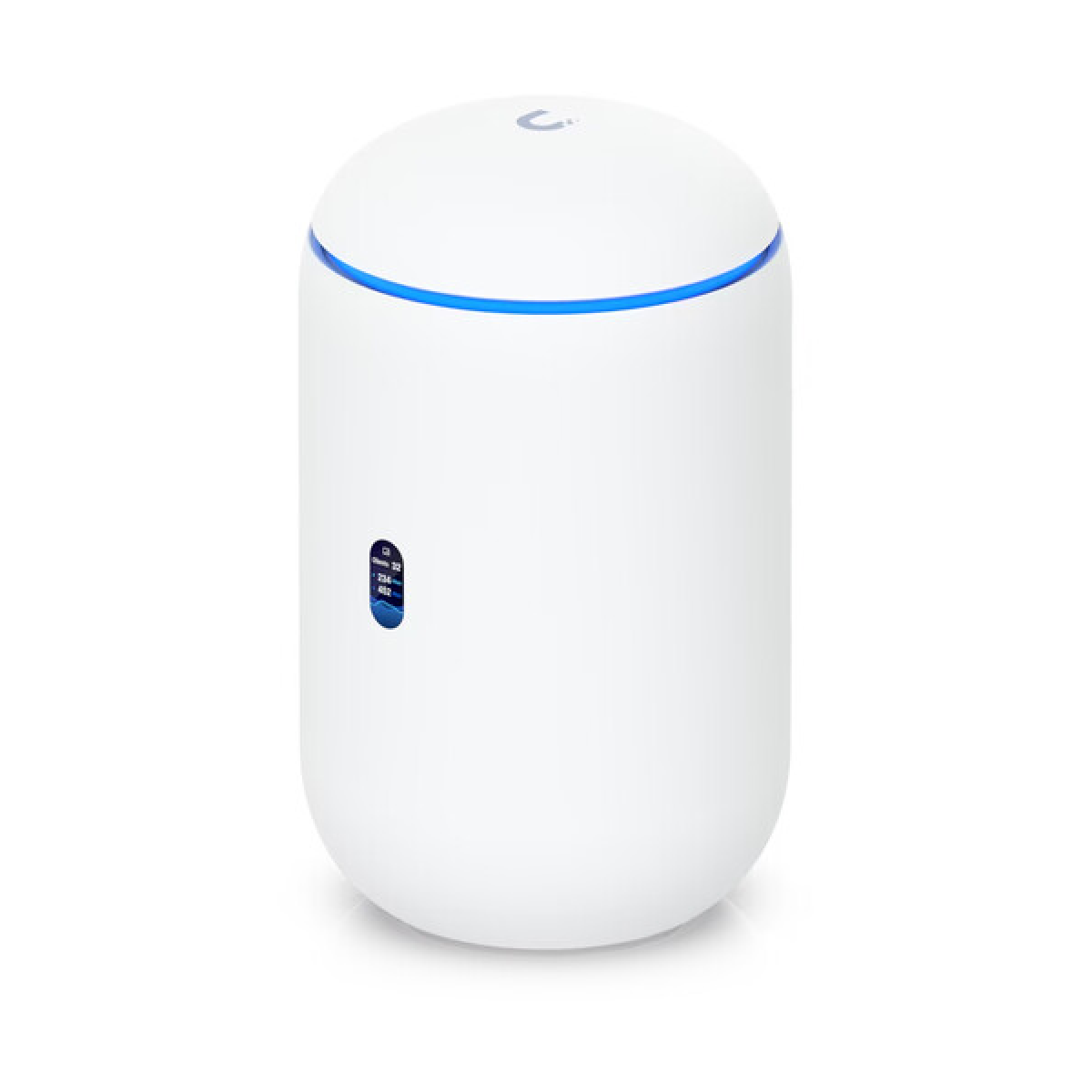

Ubiquiti Networks Dream Router 7
Key Specs
| Wi-Fi | Wi-Fi 7 (802.11be); Tri-Band (2.4, 5, & 6 GHz) with MU-MIMO Support (2 x 2) |
|---|---|
| Throughput | 11,000 Mb/s Total 2.4 GHz: 688 Mb/s 5 GHz: 4300 Mb/s 6 GHz: 5700 Mb/s |
| Inputs/Outputs | 3x RJ45 2.5 GbE LAN 1x SFP+ 10 GbE WAN 1x RJ45 2.5 GbE WAN PoE (15.4 W, 802.3af) |
Wireless
| Wi-Fi | Wi-Fi 7 (802.11be); Tri-Band (2.4, 5, & 6 GHz) with MU-MIMO Support (2 x 2) |
|---|---|
| Antenna Gain | 7 dBi |
| Transmit Power | 26 dBm |
| Supported Protocols | Auto-MDIX/MDI DHCP Server IGMP Snooping IPv4 IPv6 |
| Antenna Placement | Internal |
| Bluetooth | Yes |
| Cellular Support | No |
Performance
| Throughput | 11,000 Mb/s Total 2.4 GHz: 688 Mb/s 5 GHz: 4300 Mb/s 6 GHz: 5700 Mb/s |
|---|
Interface
| Inputs/Outputs | 3x RJ45 2.5 GbE LAN 1x SFP+ 10 GbE WAN 1x RJ45 2.5 GbE WAN PoE (15.4 W, 802.3af) |
|---|
Security
| Guest Network Support | Yes |
|---|---|
| Wireless Security | WPA, WPA-PSK, WPA2, WPA3 |
| VPN Protocol | L2TP |
| Firewall Support | No |
| Lock Slot | No |
Management
| Mobile App Compatible | Yes: Android & iOS |
|---|
Hardware
| RAM | 3 GB |
|---|---|
| CPU | Quad-Core: Up to 1.5 GHz Cortex A |
| Media Card Reader | 1x microSDXC |
| Display | 0.96" |
| Supported IEEE Standards | 802.11a, 802.11ac, 802.11ax, 802.11b, 802.11be, 802.11g, 802.11n |
Electrical
| Input Power | 100 to 240 VAC, 50 / 60 Hz |
|---|---|
| Power Consumption | 50 W |
General
| Environmental Resistance | No |
|---|---|
| Certifications | CE, FCC, IC |
| Operating Conditions | 14 to 104°F / -10 to 40°C at 5 to 95% Humidity |
| Dimensions | 7.2 x 4.3" / 184.1 x 110 mm |
| Weight | 2.4 lb / 1.1 kg |
Packaging Info
| Package Weight | 3.775 lb |
|---|---|
| Box Dimensions (LxWxH) | 12.1 x 6.7 x 6" |
Identifiers
| MPN | UDR7 |
|---|---|
| GTIN / EAN / UPC | 810177160212 |
