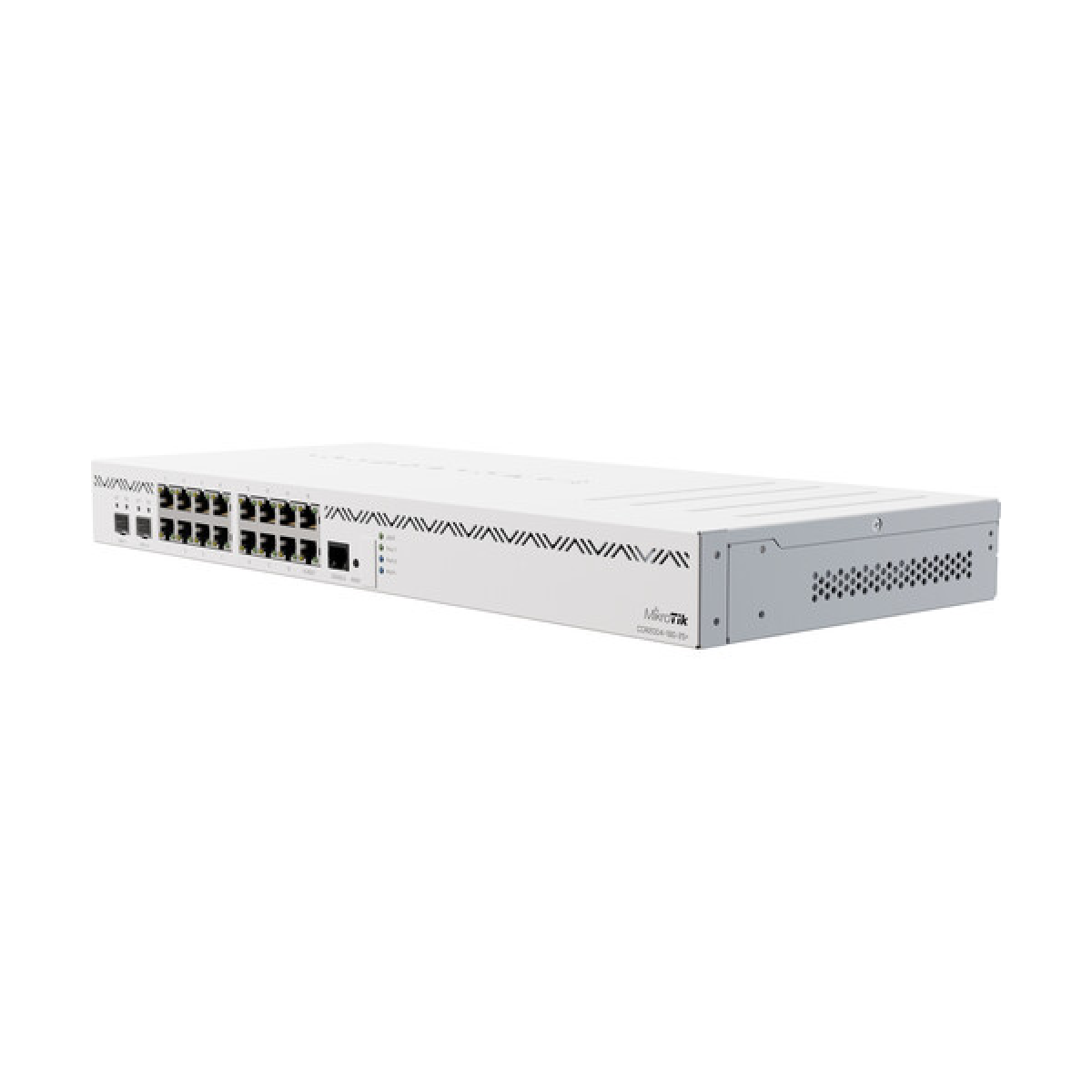

MikroTik CCR2004-16G-2S+ 1000M 16PORT NET ROUTER
General
| Model | CCR2004-16G-2S+ |
|---|---|
| Architecture | ARM 64bit |
| CPU | AL32400 |
| CPU nominal frequency | 1700 MHz |
| CPU core count | 4 |
| RAM size | 4 GB |
| RAM type | DDR4 |
| Number of RAM slots | 0 |
| RAM slot type | Not upgradable |
| Storage type | NAND |
| Storage size | 128 MB |
| Operating System | RouterOS (license level 6) |
| Switch chip model | Marvell 98DX8335 |
Ethernet
| 10/100/1000 Ethernet ports | 16 |
|---|
Fiber
| SFP+ ports | 2 |
|---|
Peripherals
| Serial console port | RJ45 |
|---|---|
| Number of USB ports | 1 |
| USB Power Reset | Yes |
| USB port type | USB 3.0 type A |
| Max USB current (A) | 1.5 |
Powering
| Number of DC inputs | 2 |
|---|---|
| DC input voltage | 20-57 V |
| Max power consumption | 62 W |
| Max power consumption without attachments | 28 W |
| PoE in | 802.3af/at |
| PoE in input Voltage | 20-57 V |
Other
| PCB temperature monitor | Yes |
|---|---|
| Voltage Monitor | Yes |
| Mode button | Yes |
| License level | 6 |
Certification & Approvals
| Certification | CE, EAC, ROHS |
|---|
Environment
| Operating temperature | -20°C to 60°C tested |
|---|
Identifiers
| MPN | CCR2004-16G-2S+ |
|---|---|
| GTIN / EAN / UPC | 4752224007704 |
