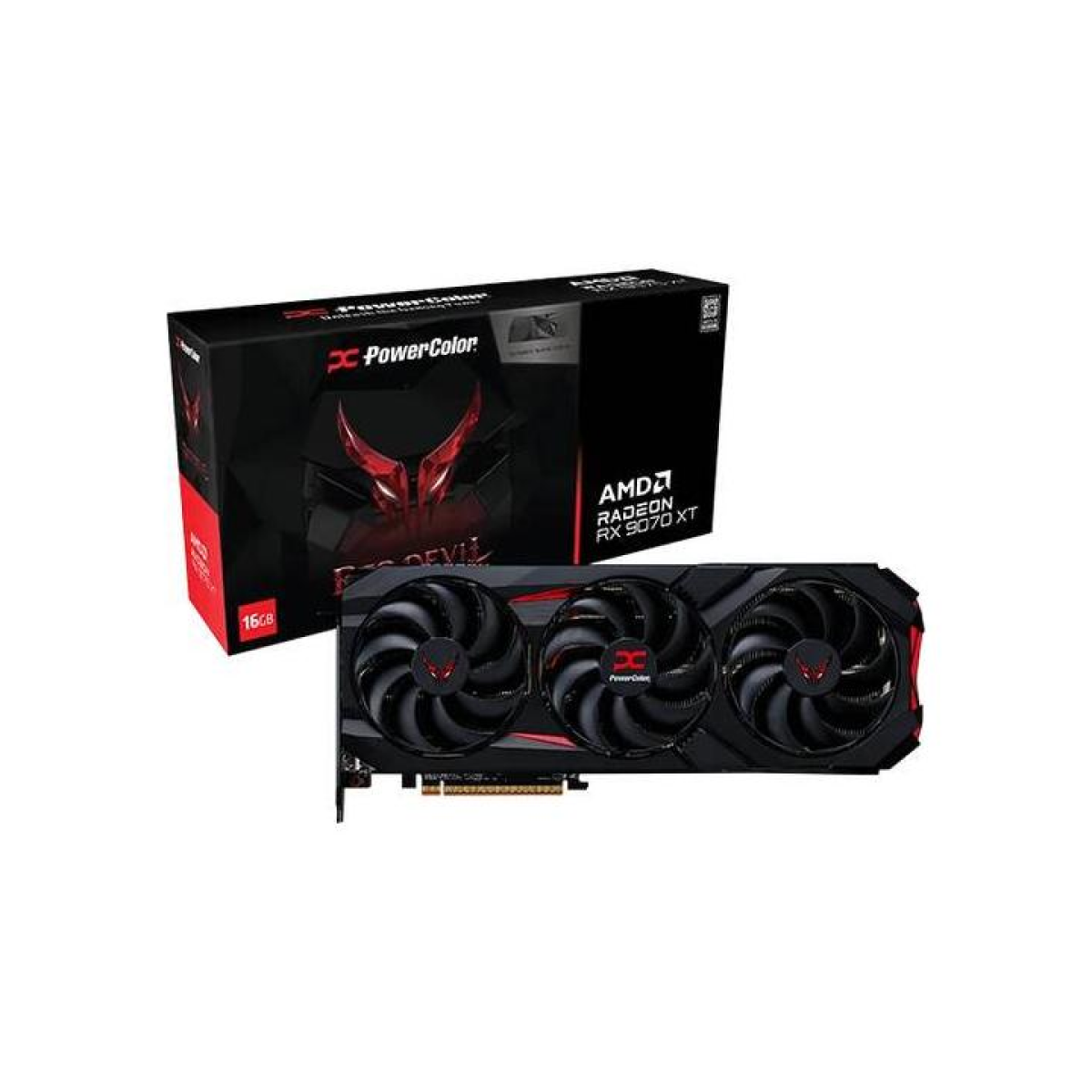

PowerColor Red Devil AMD Radeon RX 9070 XT OC SE 16GB GDDR6
| GPU Model | AMD Radeon RX 9070 XT |
|---|---|
| Stream Processors | 4096 |
| Interface | PCIe 5.0 x16 |
| Video RAM | 16 GB GDDR6 |
| Boost Clock | Up to 3060 MHz |
| Architecture | RDNA 4 (Navi 48 XTX) |
|---|---|
| Compute Units | 64 |
| Ray Accelerators | 64 |
| Texture Units (TMUs) | 256 |
| ROP Units | 128 |
| Memory Size | 16 GB |
|---|---|
| Memory Type | GDDR6 |
| Memory Interface | 256-bit |
| Memory Bandwidth | ≈645 GB/s |
| Theoretical FP32 | ≈50 TFLOPS |
|---|---|
| TDP (Board Power) | ≈304 W |
| Recommended PSU | 750–900 W |
| Outputs | 3× DisplayPort 2.1a, 1× HDMI 2.1b |
|---|---|
| Max Resolution | 7680 × 4320 (8K) |
| Multi‑Monitor | Up to 4 displays |
| Cooling System | Triple Fan, 7× heatpipes, copper baseplate |
|---|---|
| Slot Width | Triple-slot (approx. 69 mm thick) |
| Backplate | Reinforced metal w/ RGB lighting |
| Board Length | 340 mm (13.4″) |
|---|---|
| Board Height | 132 mm (5.2″) |
| Board Width | 69 mm (2.7″) |
| Power Connectors | 3× 8‑pin PCIe |
| Package Dimensions (L×W×H) | 41.5 × 22.5 × 9.5 cm |
|---|---|
| Package Weight | 2.3 kg |
| MPN | RX9070XT 16G-E/OC/BP |
|---|---|
| GTIN / EAN / UPC | 4713436176046 |
