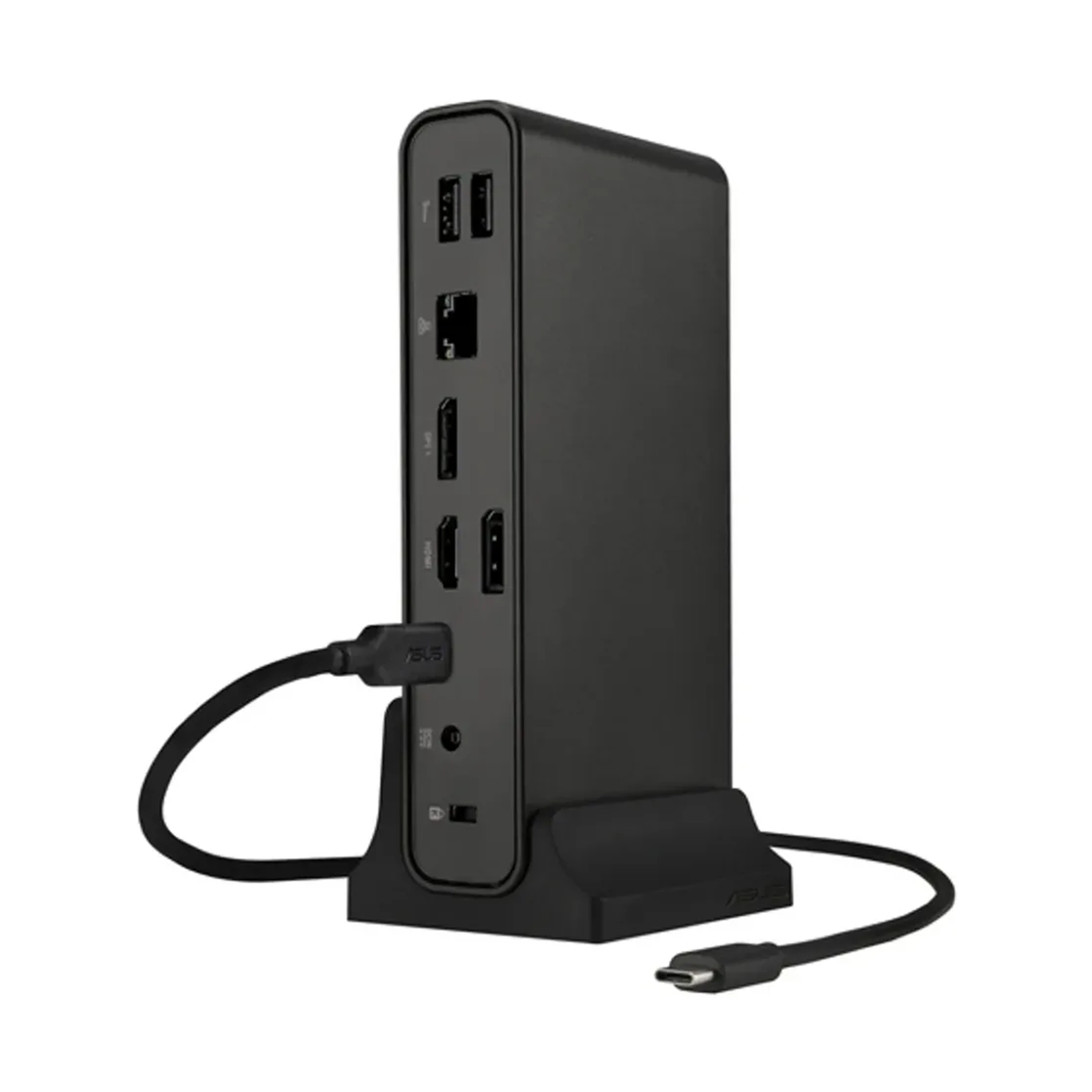

ASUS DC301 Triple Display USB-C Docking Station 90XB0A5N-BDS010
ASUS Triple Display USB-C Dock Duo DC301 Black
| Product Information | |
|---|---|
| Brand | ASUS |
| Model | DC301 Triple Display USB-C Dock Duo |
| MPN | 90XB0A5N-BDS010 |
| EAN | 4711387832240 |
| Product Type | USB-C Docking Station |
| Colour | Black |
| Connectivity | Wired |
| Material | Plastic, Metal |
| Host Connection | USB-C |
| Host Cable | Detachable 1 m USB-C cable |
| Maximum Laptop Power Delivery | Up to 90 W |
| Display Support | |
| Maximum Number of External Displays | 3 |
| HDMI Output | 1 x HDMI 2.0 |
| DisplayPort Outputs | 2 x DisplayPort 1.4 |
| USB-C Display Output | 1 x USB-C with DisplayPort 1.4 support |
| Maximum Single Display Resolution | 3840 x 2160 at 60 Hz |
| Dual Display Resolution | Up to 2 x 3840 x 2160 at 60 Hz |
| Triple Display Resolution | Up to 3 x 3840 x 2160 at 30 Hz |
| USB Ports | |
| USB-A 3.2 Gen 1 | 2 ports, up to 5 Gbps |
| USB-A 3.2 Gen 2 | 1 port, up to 10 Gbps, 5 V / 2.4 A charging |
| USB-C 3.2 Gen 2 | 1 port, up to 10 Gbps, 5 V / 3 A charging |
| USB-C DisplayPort | 1 port with DisplayPort 1.4 video output |
| Networking | |
| Ethernet | 1 x RJ-45 Gigabit Ethernet |
| Ethernet Speed | 10/100/1000 Mbps |
| Card Reader | |
| Card Reader Type | SD card reader |
| Audio | |
| Audio Connector | 1 x 3.5 mm audio combo jack |
| Security | |
| Security Slot | Kensington lock slot |
| Controls and Indicators | |
| Power Button | 1 x power button with indicator LED |
| Operating System Compatibility | |
| Windows | Windows 10 or later |
| macOS | macOS 13 or later |
| Power | |
| Power Adapter | 150 W DC adapter |
| Adapter Output | 20 V / 7.5 A |
| Power Input Connector | 4.5 mm DC jack |
| Physical Specifications | |
| Dimensions | 16 x 8 x 3.2 cm (W x D x H) |
| Dock Weight | 514 g |
| Docking Stand Weight | 95 g |
| Cable Length | 1 m |
| In the Box | |
| Included Accessories | USB-C cable, docking stand, 150 W power adapter, power cord, user manual and warranty card |
| Packaging | |
| Packaging Weight | 1.55 kg |
| Packaging Dimensions | 7.1 x 23.3 x 25.1 cm (H x W x L) |
Identifiers
| MPN | 90XB0A5N-BDS010 |
|---|---|
| GTIN / EAN / UPC | 4711387832240 |
