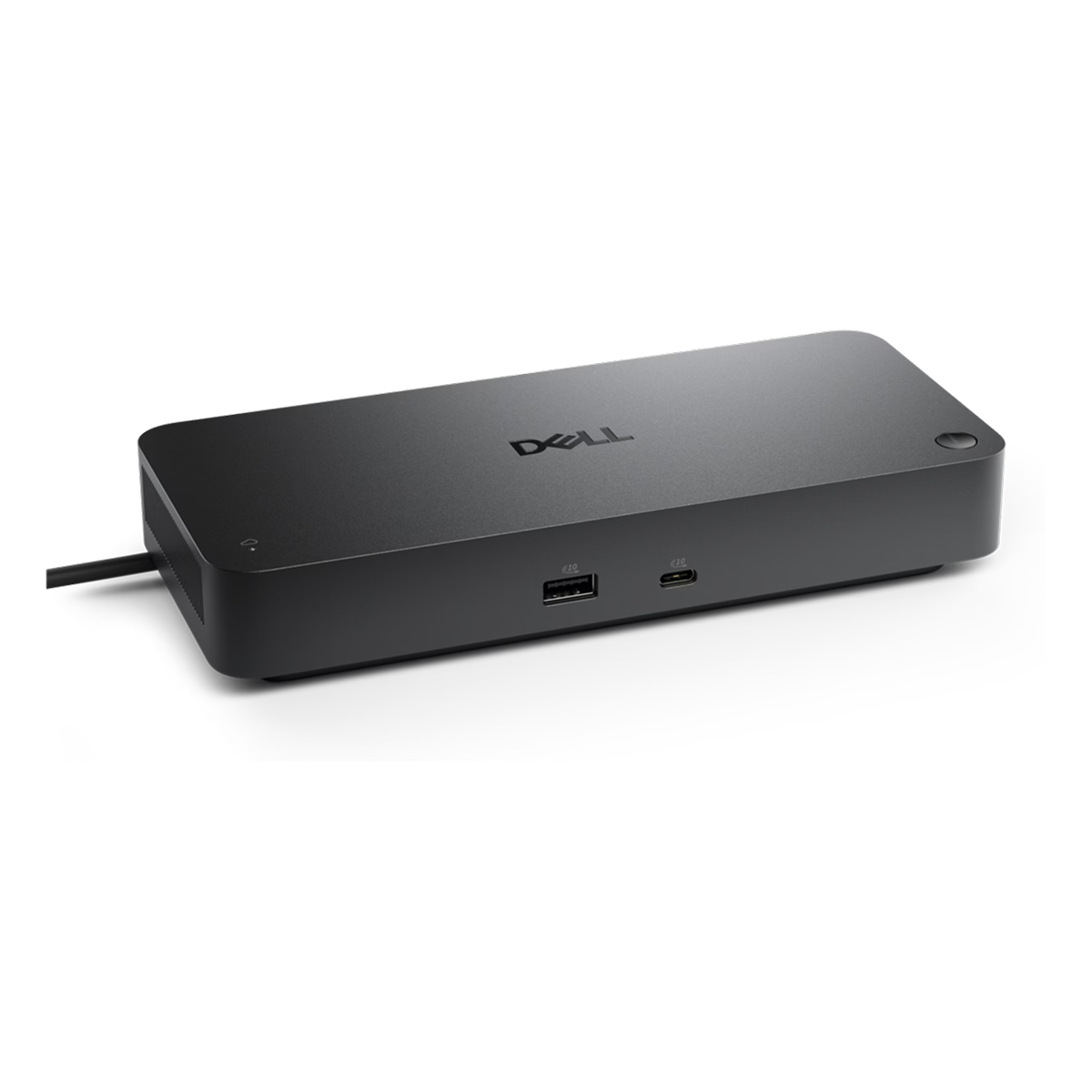

Dell Pro Thunderbolt 5 Smart Dock SD25TB5
Dell Pro Thunderbolt 5 Smart Dock SD25TB5
| Brand | Dell |
|---|---|
| Product Type | Docking Station |
| Product Series | Dell Pro |
| Model | SD25TB5 |
| MPN | 210-BRFN |
| Colour | Black |
| Connectivity Technology | Wired |
| Host Interface | Thunderbolt 5 via USB Type-C |
| Thunderbolt Version | Thunderbolt 5 |
| Supported Devices | Compatible Laptops and Computers |
| USB-A Ports | 4 × USB 3.2 Gen 2, 10 Gbps |
| USB-C Data Ports | 1 × USB 3.2 Gen 2, 10 Gbps |
| USB-C DisplayPort Port | 1 × USB 3.2 Gen 2 with DisplayPort 2.1 Alt Mode |
| Thunderbolt 5 Ports | 2 |
| DisplayPort Outputs | 2 × DisplayPort 2.1 |
| HDMI Output | 1 × HDMI 2.1 |
| Ethernet Port | 1 × RJ-45 |
| Ethernet Speed | 10/100/1000/2500 Mbps |
| Maximum External Displays | Up to 4, depending on host computer capabilities |
| Maximum Display Resolution | Up to 8K at 60 Hz or 4K at 120 Hz with compatible hardware and Display Stream Compression |
| Display Support | QHD, WQHD, 4K, 5K, 6K and 8K |
| Power Delivery to Dell Computers | Up to 300 W |
| Power Delivery to Non-Dell Computers | Up to 240 W, with compatible USB Power Delivery 3.1 Extended Power Range systems |
| Power Adapter | 330 W AC Adapter |
| Docking Cable Length | 83 cm |
| USB-A Power Output | 4 × 4.5 W |
| USB-C Power Output | 1 × 15 W and 1 × 7.5 W DisplayPort multifunction port |
| Thunderbolt Power Output | 2 × 15 W |
| Power Button | Yes, with supported host power synchronisation |
| LED Indicators | Power Button, Remote Management and Ethernet |
| Management Features | Dell Command Update, Remote Firmware Updates, Port Disablement and Cloud Management |
| Network Management | Wake-on-LAN, PXE Boot, MAC Address Pass-through and WLAN-to-LAN Switching |
| Enterprise Management | Intel AMT over Thunderbolt with Supported Intel vPro Computers |
| Security Features | Kernel Direct Memory Access Protection |
| Security Slots | Kensington Lock Slot and Noble Wedge Lock Slot |
| Operating Systems | Windows 10, Windows 11, Ubuntu 24.04, RHEL 9.7+, ChromeOS 141 and macOS |
| Thunderbolt Certification | Thunderbolt 5 Certified |
| Product Height | 3.525 cm |
| Product Width | 20.5 cm |
| Product Depth | 9 cm |
| Product Weight | 632 g, excluding power adapter |
| VESA Mount Support | 100 × 100 mm mounting screw holes |
| In the Box | Docking Station, 330 W Power Adapter, Power Cord and Documentation |
| Packaging Weight | 1.92 kg |
| Packaging Dimensions | 8 × 24 × 29 cm(H × W × L) |
Identifiers
| MPN | 210-BRFN |
|---|---|
| GTIN / EAN / UPC | 5715328163263 |
