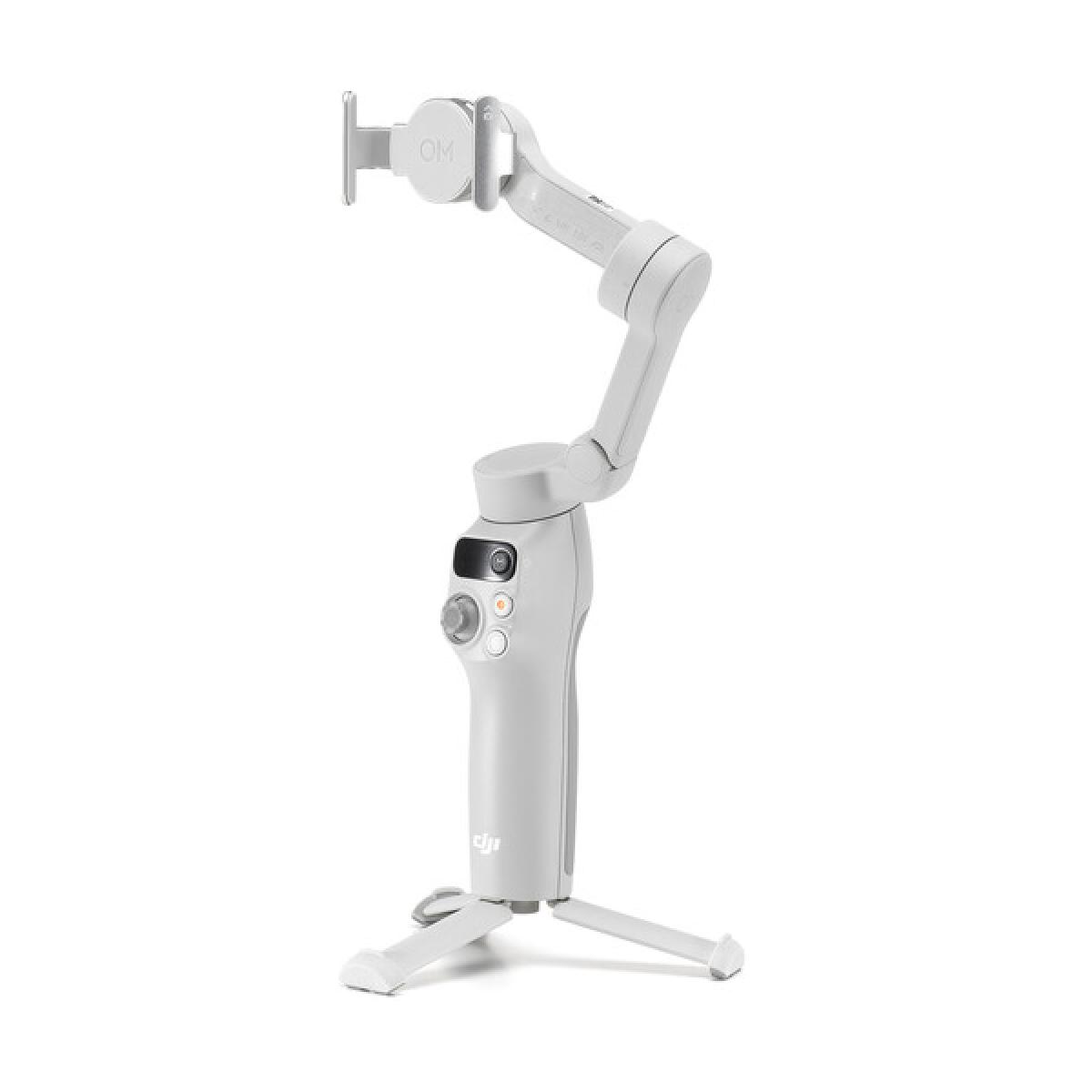

DJI Osmo Mobile 7 Smartphone Gimbal Gray
Key Specs
| Gimbal Design | Single Handgrip |
|---|---|
| Load Capacity | 6 to 10.6 oz / 170 to 300 g |
| Number of Axes | Three: Pitch (Tilt) / Roll / Yaw (Pan) |
| Smartphone Dimensions | Thickness: 0.3 to 0.4" / 6.9 to 10 mm Width: 2.6 to 3.3" / 67 to 84 mm |
| Smartphone Mounting Method | Magnetic Clamp |
| Display Type | No |
| Dimensions | 7 x 3.7 x 1.5" / 179 x 95 x 39 mm (Folded) 10.9 x 4.2 x 3.7" / 278 x 107 x 93 mm (Handle to Handle) |
| Weight | 10.6 oz / 300 g |
Gimbal
| Load Capacity | 6 to 10.6 oz / 170 to 300 g |
|---|---|
| Number of Axes | Three: Pitch (Tilt) / Roll / Yaw (Pan) |
| Rotation Range | Controllable Range Yaw (Pan): 309° (-99 to 210°) Roll: 312° (-67 to 245°) Pitch (Tilt): 60° (-20 to 40°) Mechanical Range Yaw (Pan): 331° (-109 to 222°) Roll: 332° (-77 to 255°) Pitch (Tilt): 324° (-224 to 100°) |
| Follow Speed | 120°/s |
| Counterweight | No |
| Joystick Controller | Yes (Included) |
Compatibility
| Smartphone Dimensions | Thickness: 0.3 to 0.4" / 6.9 to 10 mm Width: 2.6 to 3.3" / 67 to 84 mm |
|---|---|
| Smartphone Mounting Method | Magnetic Clamp |
Connectivity
| Inputs/Outputs | 1x USB-C |
|---|---|
| Wireless | Bluetooth 5.3 *Built-In |
| Mobile App Compatible | Yes: Android & iOS App Name: DJI Mimo |
Battery
| Battery Type | Built-In (3350 mAh) |
|---|---|
| Battery Runtime | 10 Hours |
| Battery Charging Time | 2.5 Hours |
General
| Display Type | No |
|---|---|
| Environmental Resistance | No |
| Operating Conditions | 41 to 104°F / 5 to 40°C |
| Accessory Mounting | 1 x 1/4"-20 Female |
| Dimensions | 7 x 3.7 x 1.5" / 179 x 95 x 39 mm (Folded) 10.9 x 4.2 x 3.7" / 278 x 107 x 93 mm (Handle to Handle) |
| Weight | 10.6 oz / 300 g |
Packaging Info
| Package Weight | 0.975 lb |
|---|---|
| Box Dimensions (LxWxH) | 8.9 x 4.6 x 2.2" |
Identifiers
| MPN | CP.OS.00000406.01 |
|---|---|
| GTIN / EAN / UPC | 6941565997586 |
