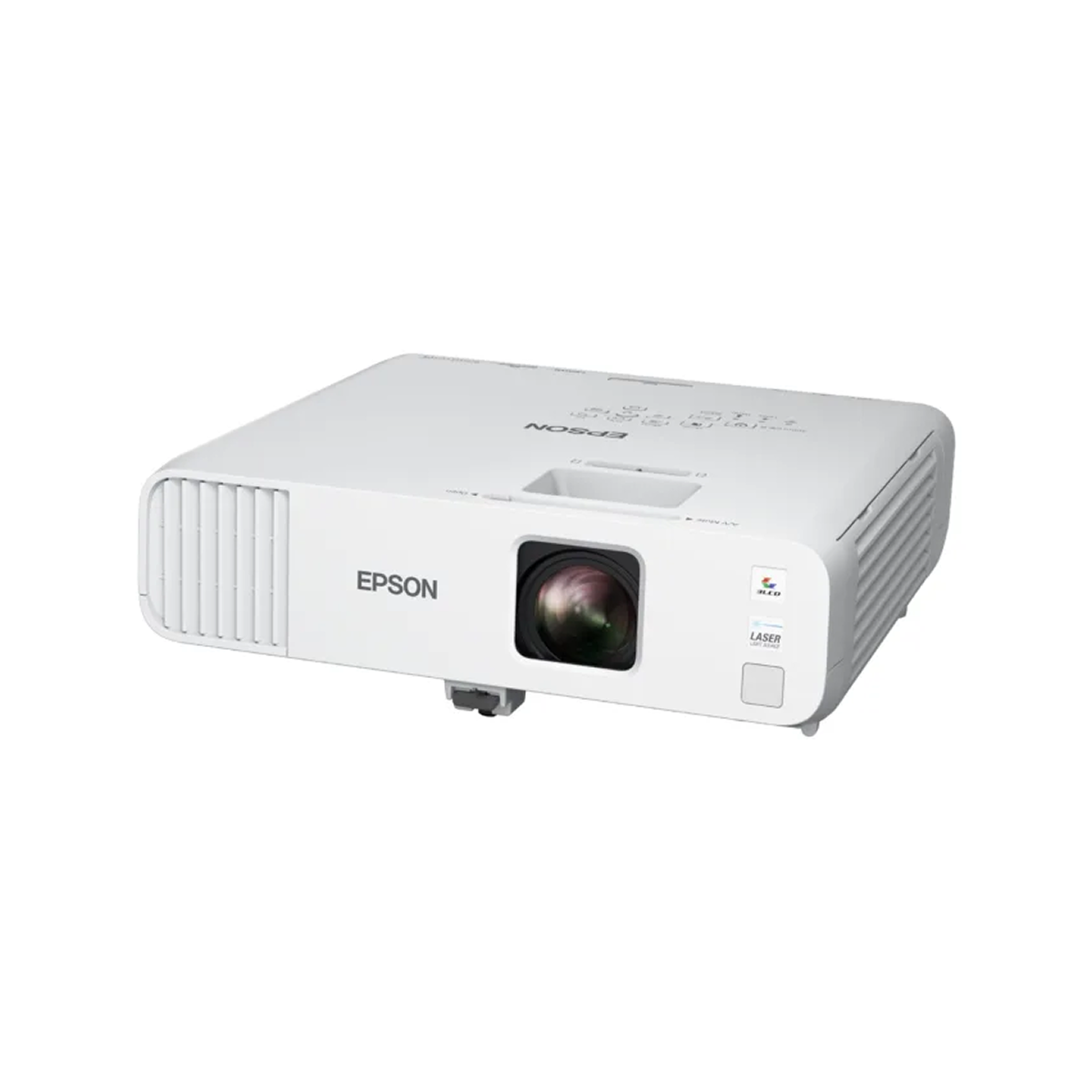

EPSON 3LCD Projector EB-L270F FHD 5200 ANSI lumens White
Epson EB-L270F 3LCD Laser Projector Full HD 5200 Lumens White
| Product Information | |
|---|---|
| Brand | Epson |
| Product Type | Laser Projector |
| Product Series | EB-L Series |
| Model | EB-L270F |
| MPN | V11HC68080 |
| EAN | 8715946749914 |
| Colour | White |
| Recommended Usage | Business presentations, education and meeting rooms |
| Projection Technology | |
| Projection System | 3LCD |
| LCD Panel Size | 0.62 inches |
| Native Resolution | 1920 x 1080 pixels |
| Resolution Standard | Full HD (1080p) |
| Aspect Ratio | 16:9 |
| Brightness | 5200 ANSI lumens |
| White Light Output | 5200 lumens |
| Colour Light Output | 5200 lumens |
| Eco Mode Brightness | 3600 lumens |
| Contrast Ratio | 5000000:1 |
| Colour Reproduction | Up to 1.07 billion colours |
| Colour Processing | 10-bit |
| Supported Colour Modes | Dynamic, Presentation, Cinema, sRGB, Blackboard, DICOM Simulation and Multi-projection |
| Light Source | |
| Light Source Type | Laser diode |
| Laser Life | 20000 hours in normal mode |
| Laser Life in Eco Mode | 30000 hours |
| Lamp Replacement | No conventional lamp replacement required |
| Optical System | |
| Lens Type | Fixed optical lens |
| Focus | Manual |
| Zoom | Optical zoom |
| Zoom Ratio | 1.62x |
| Focal Length | 18.2–29.1 mm |
| F-Number | f/1.51–1.77 |
| Throw Ratio | 1.32–2.12:1 |
| Projection Distance | 0.9–9.1 m |
| Projection Screen Size | 31–310 inches |
| Keystone Correction | Horizontal and vertical correction up to ±30° |
| Horizontal Keystone Correction | ±30° |
| Vertical Keystone Correction | ±30° |
| Lens Shift | Not specified |
| Audio | |
| Built-in Speaker | Yes |
| Speaker Output | 16 W |
| Audio Output Mode | Mono |
| Connectivity | |
| HDMI Inputs | 2 |
| VGA Inputs | 2 x D-sub 15-pin |
| VGA Output | 1 x D-sub 15-pin |
| USB Type-A | 1 x USB port |
| USB Type-B | 1 x USB 2.0 |
| Ethernet | 1 x RJ-45 LAN |
| Composite Video Input | 1 x RCA |
| Audio Inputs | RCA stereo and 3.5 mm stereo mini-jack |
| Audio Output | 1 x 3.5 mm stereo mini-jack |
| Microphone Input | 1 x 3.5 mm stereo mini-jack |
| Serial Interface | 1 x RS-232C |
| Wireless Connectivity | Optional wireless LAN adapter |
| Wireless Projection | Supported with compatible optional wireless equipment |
| Network Features | Network projector management and Epson iProjection support |
| Network Protocol | PJLink |
| Included Software | Epson Projector Management |
| Advanced Features | |
| Split Screen | Yes |
| Edge Blending | Yes |
| 360-Degree Projection | Yes |
| Content Playback | Yes |
| Instant Off | Yes |
| Direct Power On | Yes |
| Security Features | Kensington lock, security bar, control panel lock and password protection |
| Mounting | Desktop, ceiling or wall installation with compatible mount |
| Power | |
| Power Supply | AC |
| Input Voltage | 100–240 V AC |
| Input Frequency | 50–60 Hz |
| Power Consumption | 278 W in normal mode at 220–240 V |
| Power Consumption in Eco Mode | 217 W in energy-saving mode at 220–240 V |
| Standby Power Consumption | 0.5 W with communication disabled |
| Noise Level | 38 dB in normal mode |
| Noise Level in Eco Mode | 28 dB |
| Environmental Conditions | |
| Operating Temperature | 0–40°C |
| Operating Humidity | 20–80% relative humidity |
| Storage Temperature | -10–60°C |
| Storage Humidity | 10–90% relative humidity |
| Physical Characteristics | |
| Width | 32.5 cm |
| Depth | 29.9 cm |
| Height | 9 cm |
| Weight | 4.2 kg |
| Warranty | |
| Projector Warranty | Varies by region and supplier |
| In the Box | |
| Included Accessories | Projector, remote control, batteries, power cable, HDMI cable and documentation; confirm regional package contents |
| Packaging | |
| Packaging Weight | 6.05 kg |
| Packaging Dimensions | 10 × 32.5 × 30 cm (H × W × L) |
Identifiers
| MPN | V11HC68080 |
|---|---|
| GTIN / EAN / UPC | 8715946749914 |
