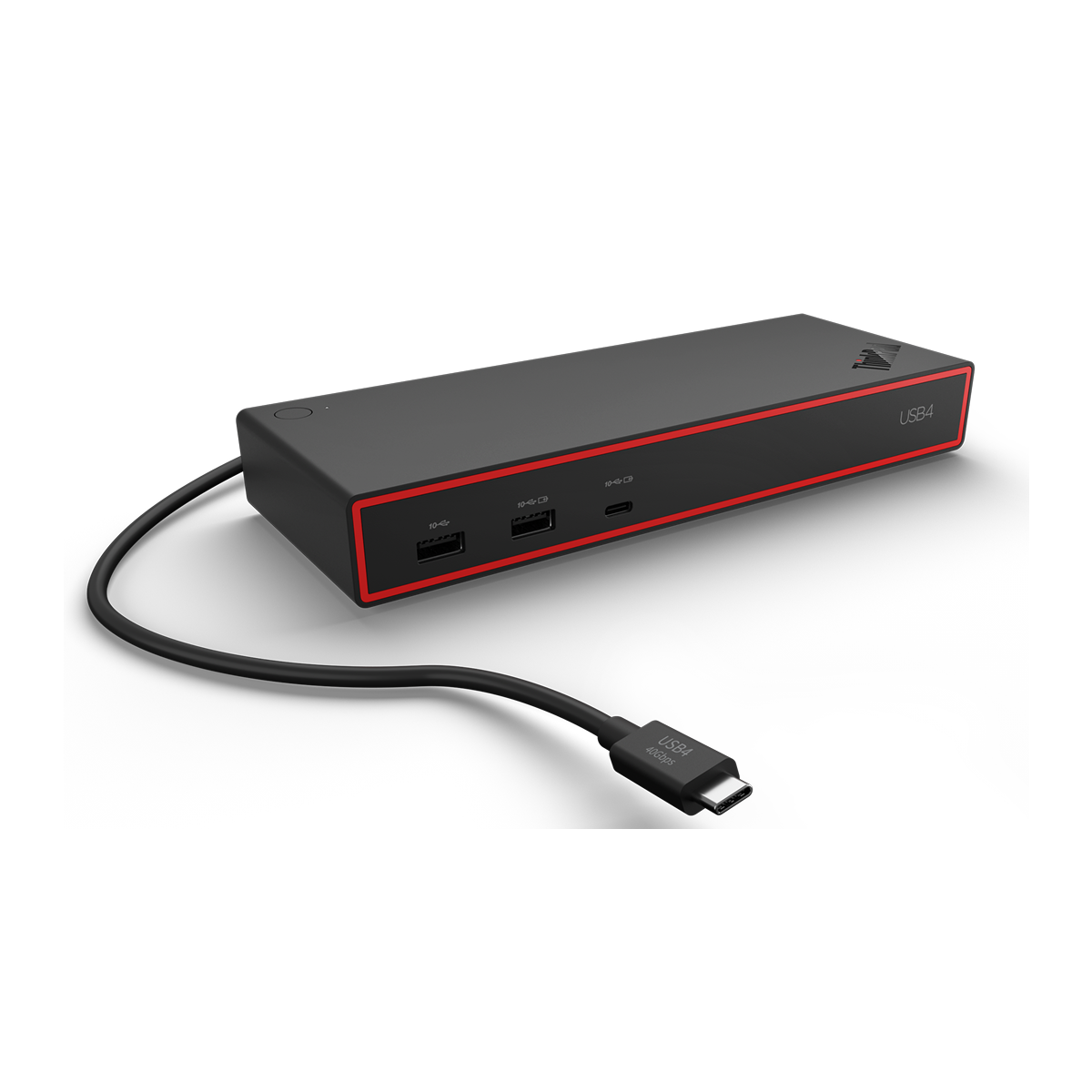

Lenovo ThinkPad USB4 Smart Dock 5500 - 135W Black
Network
| Technology | Wired Docking Station / USB4 / No Cellular / Ethernet RJ45 1 Gbps / Supports WOL, PXE Boot, MAC Address Passthrough on ThinkPad Notebooks |
|---|---|
| 2G Bands | N/A - Ethernet LAN 1000 Mbit/s / RJ45 1 Gbps / 10 Mbps 100 Mbps 1000 Mbps |
| 3G Bands | N/A |
| 4G Bands | N/A |
| 5G Bands | N/A |
| Speed | USB4 40Gbps Bandwidth upstream / USB4 Upstream Connectivity 40Gbps / USB 3.2 Gen 2 10 Gbps / Ethernet 1000 Mbit/s / Data Transfer 10 Gbps / Support WOL PXE Boot MAC Passthrough |
| Host Interface | USB4 / 1 x USB4 Number of ports USB4 1 / Host Interface USB4 / Interface USB4 / Thunderbolt Compatible / USB4 Smart Dock / Brand new Lenovo Accessories Fleet Manager LAFM powered by AWS / Integrated 1m USB4 Cable |
Body
| Dimensions | 218 x 80 x 31.5 mm / W 218mm D 80mm H 31.5mm / 8.58 x 3.15 x 1.24 inch / 220 x 80 x 30 mm / 218 x 80 x 31.5 mm / Ancho 218 mm Profundidad 80 mm Altura 31.5 mm / Dimension WxDxH mm 218 x 80 x 31.5 mm / Dock mm 218 x 80 x 31.5 mm |
|---|---|
| Weight | 472 g / 0.472 kg / Starting at 472 g (1.04 lbs) Dock / Adapter with Power Cord 135W Starting at 390 g (0.86 lbs) / Adapter 100W Starting at 282 g / Packed 135W Starting at 1095 g (2.41 lbs) / Packed Weight 1.09 kg / Weight 472g / Package Weight 1.095kg / Peso 472gr / 1.09 kg package |
| Build | Plastica / Plastic / 90% PCC on Exterior Casing / Plastic-free Packaging / FSC Certified Packaging / TÜV Carbon Footprint Certified / Certified by TÜV for reduced carbon footprint / Color del producto Negro / Color primario negro / Name of color Eclipse Black / Black / Negro / Eclipse Black |
| SIM | No SIM - No Card Reader / Tarjeta de lectura integrada No / Card reader No / SD Card reader No |
| Lock Slot | Kensington Lock Slot / 2 x Kensington Lock Slot / 1 x Microsaver 1 x Nanosaver / 2 x Security lock slot / Ranura para cable de seguridad Yes / Tipo de ranura de bloqueo del cable Kensington / Security 2 x Kensington Lock Slot |
| Model | ThinkPad USB4 Smart Dock 5500 / Model 40BC0135EU / Part Number 40BC0135EU / PN 40BC0100xx / 40BC0135 / 40BC0100 / E.40BC0135EU / ThinkPad USB4 Smart Dock 5500 with 135W Adapter / USB4 SMART DOCK 5500 - 135W EU / Lenovo 40BC0135 ThinkPad 135W USB4 Type C Smart Dock 5500 |
Display
| Type | DisplayPort 1.4 x2 + HDMI 2.1 x1 + USB-C Full-Function DP 1.4 x1 / Video Outputs Support up to 4 external displays / Supports extend mirror duplicate single |
|---|---|
| Size | Number of displays supported 4 / Max Number of Displays 4 x 4K / Maximum 4 Displays / Número de pantallas soportadas 4 / 4 x 4K @ 60Hz / 2 x 4K @ 144Hz / 1 x 8K @ 60Hz |
| Resolution | Maximum Digital 3840 x 2160 Pixels / 1x 8K @ 60Hz / 2x 4K @ 144Hz / 4x 4K @ 60Hz / Supported resolution One DP up to 3840 x 2160 @ 240Hz One HDMI up to 7680 x 4320 @ 60Hz One USB-C up to 3840 x 2160 @ 144Hz Two outputs up to 3840 x 2160 @ 144Hz Three outputs up to one 3840 x 2160 @144Hz and two 3840 x 2160 @60Hz Four outputs up to four 3840 x 2160 @60Hz / Resolution máxima digital 3840 x 2160 / Máxima velocidad de actualización 60 Hz / Max refresh 240Hz DP 60Hz HDMI 8K |
| Protection | N/A |
| Display Version | 2 x DisplayPort 1.4 / 1 x HDMI 2.1 / 1 x USB-C Full-Function DP 1.4 / Versión HDMI 2.1 / Versión DisplayPort 1.4 / Number of ports HDMI 1 / Cantidad de DisplayPorts 2 / Display 2 x DP 1.4 1 x HDMI 2.1 1 x USB-C Full-Function DP 1.4 |
Platform
| OS | Windows 10 and Above / Windows 11 10 7? / Windows Supported Yes / MAC Supported Yes / macOS Sequoia / macOS Sonoma / System Supported Windows 10 and Above macOS Sequoia macOS Sonoma / Operating System Windows supported MAC supported / Lenovo Accessories Fleet Manager LAFM Cloud Service Amazon AWS |
|---|---|
| Chipset | N/A - Dock Solution USB4 / Intel? USB4 Smart Dock |
| CPU | N/A |
| GPU | N/A - Supports DP Alt Mode / Full-Function DP 1.4 |
Memory
| Card Slot | No / Tarjeta de lectura integrada No |
|---|---|
| Internal | N/A - Docking station expand ports |
Main Camera
| Single | No |
|---|
Selfie Camera
| Single | No |
|---|
Sound
| Loudspeaker | No - Audio Pass-Through via HDMI DP / No Audio Jack on this model / Micrófono jack de entrada No |
|---|---|
| 3.5mm Jack | No - This 5500 variant has no 3.5mm (Thunderbolt 4 Smart Dock variant has it) / Audio Jack No / Combo Audio Jack not on USB4 5500 / 0 audio jack |
Comms
| WLAN | No - Ethernet only / WiFi Supported via laptop / WOL supported |
|---|---|
| Bluetooth | No - Via laptop |
| Positioning | No |
| NFC | No |
| Infrared Port | No |
| Radio | No |
| USB | USB Ports 2 x USB-A 3.2 Gen 2 1 x AOU 12W + 1 x USB-C 3.2 Gen 2 AOU 7.5W + 2 x USB-A 3.2 Gen 2 10W + 1 x USB-C 3.2 Gen 2 Full-Function 7.5W / Total 6 USB ports downstream / Cantidad de puertos tipo A USB 3.2 Gen 2 3.1 Gen 2 4 / Cantidad de puertos tipo C USB 3.2 Gen 2 3.1 Gen 2 2 / Number of ports USB4 1 / 2 x USB-A 3.2 Gen 2 1 x AOU 12W / 1 x USB-C 3.2 Gen 2 AOU 7.5W / 2 x USB-A 3.2 Gen 2 10W / 1 x USB-C 3.2 Gen 2 Full-Function 7.5W / USB4 Upstream / USB-C Full-Function DP 1.4 / USB-C 10 Gbps 5V 3A / USB Ports USB-A 3.2 Gen 2 / USB-C 3.2 Gen 2 / USB Type-C 3.2 / Full-Function / Always-On USB AOU |
| Ethernet | Ethernet Yes / RJ45 1 Gbps / Ethernet LAN RJ-45 cantidad de puertos 1 / Ethernet LAN velocidad transferencia 1000 Mbit/s / Support WOL PXE Boot MAC Address passthrough on ThinkPad / Switch Ethernet Si |
Features
| Sensors | No sensors - Smart Dock with LAFM |
|---|---|
| Smart Features | Lenovo Accessories Fleet Manager LAFM powered by AWS / Cloud Service Amazon AWS / IT Console Lenovo Accessories Fleet Manager LAFM Cloud Service / Web-based Management Service / Automatic firmware updates / Silent updates / Security Platform Microsoft? No Azure? Actually Microsoft Azure Sphere on Thunderbolt variant / vPro Yes / ENERGY STAR Yes |
| Security | 2 x Kensington Lock Slot / 1 x Microsaver 1 x Nanosaver / 2 x Security lock slot / Kensington Lock / Physical Security Feature 2 Security lock slot |
Battery
| Type | No Battery - AC Powered Dock / Power Supply AC / Alimentación Corriente alterna |
|---|---|
| Charging | PD 3.1 up to 100W Power Output / USB Power Delivery up to 100W / Revisión de entrega de energía USB Power Delivery 3.1 / Entrega de energía USB de hasta 100W / Fuente de alimentación 135W / Power PD 3.1 up to 100W / Suministro de potencia USB Yes / USB Power Delivery 3.1 / 100W Power Output / 100W Starting at 282g Adapter 135W Starting at 390g Adapter / Input Power 135W via 135W AC Power Adapter Slim Tip? Actually DC-IN? / AC Adapter included Yes / Power Adapter 100W/135W Power Adapter / Ship Group Smart Dock with Integrated 1m USB4 Cable 100W/135W Power Adapter User Guide & Warranty |
Our Tests
| Performance | USB4 40Gbps / Display 4x 4K @60Hz / 2x 4K @144Hz / 1x 8K @60Hz / USB 3.2 Gen 2 10 Gbps / Ethernet 1 Gbps |
|---|---|
| Display | Supports up to 7680 x 4320 @60Hz HDMI 2.1 / Supports up to 3840 x 2160 @240Hz DP / 3840 x 2160 @144Hz USB-C |
| Loudspeaker | No |
| Battery | Active use score AC 135W Adapter / 100W PD to laptop / Slim tip? DC-IN / 0 - 40°C operating temp |
| Package Content | Smart Dock with Integrated 1 m USB4 Cable, 135W Power Adapter, Power Cord, User Guide & Warranty, Warranty Card, Tarjeta de garantía Yes, Adaptador AC incluido Yes / Box Ship Group Smart Dock with Integrated 1 m USB4 Cable 100W/135W Power Adapter User Guide & Warranty |
Eu Label
| Energy | Class B / Fuente de alimentación 135W / Power 135W / 100W PD / Input Power 135W / ENERGY STAR Yes |
|---|---|
| Battery | No battery - PD 3.1 100W / Up to 100W Power Output / 135W AC Adapter |
| Free Fall | Class B - Plastic / 90% PCC / Plastic-free packaging / FSC Certified Packaging / TÜV Carbon Footprint Certified / 472g |
| Repairability | Class C - 3 Years Warranty |
| Warranty | 3 Years / Warranty 3 Years / Garantía Tarjeta Yes |
| Certifications | FCC/ICES CE KCC RCM BSMI NCC VCCI CB cULus EAC TUV- Mark LoA Ukraine DoC NOM IFT TELEC UKCA FAC DoC VNTA WPC ETA SRRC SDPPI IMDA SIRIM NBTC SUBTEL KVALITET/RATEL MCIT ANRT UCC INACOM CITRA TRA NTC PSRC NCA ARTCI INCM / FCC ICES CE KCC RCM BSMI NCC VCCI CB cULus EAC TUV- Mark LoA |
| Environmental | Intervalo de temperatura operativa 0-40°C / Intervalo de humedad relativa funcionamiento 20-95% / Operating Temperature 0-40°C / Humidity 20-95% / Minimum Operating Temp 0°C Maximum 35-40°C / Minimum Relative Humidity 20% Maximum 95% no Condensation / ESG 90% PCC on Exterior Casing / Plasticfree Packaging / FSC Certified Packaging / TÜV Carbon Footprint Certified |
Identifiers
| MPN | 40BC0135EU |
|---|---|
| GTIN / EAN / UPC | 0195892130499 |
