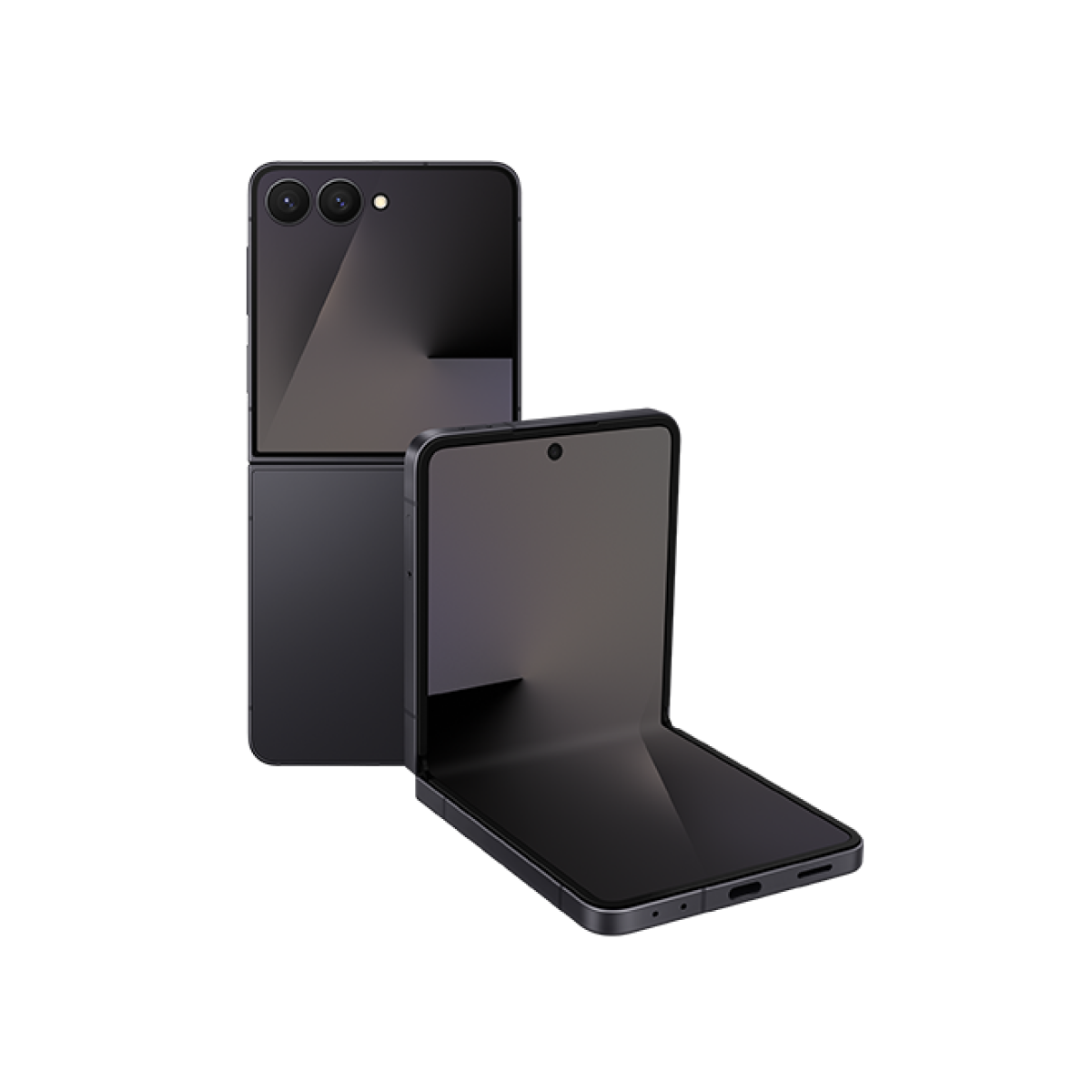

Samsung Galaxy Z Flip7 F766B 5G 256GB 12GB RAM Jetblack
Network
| Technology | GSM / CDMA / HSPA / EVDO / LTE / 5G |
|---|---|
| 2G Bands | GSM 850 / 900 / 1800 / 1900 CDMA 800 / 1900 |
| 3G Bands | HSDPA 850 / 900 / 1700(AWS) / 1900 / 2100 HSDPA 850 / 900 / 1900 / 2100 CDMA2000 1xEV-DO |
| 4G Bands | 1, 2, 3, 4, 5, 7, 8, 12, 13, 17, 18, 19, 20, 25, 26, 28, 38, 39, 40, 41, 66 - International |
| 5G Bands | 1, 2, 3, 5, 7, 8, 12, 20, 25, 26, 28, 38, 39, 40, 41, 66, 71, 77, 78 SA/NSA/Sub6 - International |
| Speed | HSPA, LTE (CA), 5G |
Body
| Dimensions | Unfolded: 16.67x 7.52 x 0.65 cm Folded: 85.5 x 75.2 x 13.7 mm |
|---|---|
| Weight | 0.19 kg(6.63 oz) |
| Build | Plastic front (unfolded), glass back (Gorilla Glass Victus 2), aluminum frame |
| SIM | Nano-SIM + eSIM + eSIM (max 2 at a time) Nano-SIM + multiple eSIM (max 2 at a time) IP48 dust and water resistant (dust > 1mm; immersible up to 1.5m for 30 min) Armor aluminum frame |
Display
| Type | Foldable Dynamic LTPO AMOLED 2X, 120Hz, HDR10+, 2600 nits (peak) |
|---|---|
| Size | 6.9 inches, 111.2 cm2 (~88.7% screen-to-body ratio) |
| Resolution | 1080 x 2520 pixels, 21:9 ratio (~397 ppi density) |
| Protection | Mohs level 1 Cover display: Super AMOLED, 120Hz, 2600 nits (peak), 4.1 inches, 948 x 1048 pixels (Gorilla Glass Victus 2) |
Platform
| OS | Android 16, up to 7 major Android upgrades, One UI 8 |
|---|---|
| Chipset | Exynos 2500 (3 nm) |
| CPU | 10-core (1x3.3GHz Cortex-X5 & 2x2.74GHz Cortex-A725 & 5x2.36GHz Cortex-A725 & 2x1.8GHz Cortex-A520) |
| GPU | Xclipse 950 |
Memory
| Card Slot | No |
|---|---|
| Internal | 256GB 12GB RAM UFS 4.0 |
Main Camera
| Dual | 50 MP, f/1.8, 23mm (wide), 1/1.57", 1.0µm, dual pixel PDAF, OIS 12 MP, f/2.2, 13mm, 123˚ (ultrawide), 1/3.2", 1.12µm |
|---|---|
| Features | LED flash, HDR, panorama |
| Video | 4K@30/60fps, 1080p@60/120/240fps, 720p@960fps, HDR10+ |
Selfie Camera
| Single | 10 MP, f/2.2, 23mm (wide), 1/3.0", 1.22µm |
|---|---|
| Features | HDR |
| Video | 4K@30/60fps |
Sound
| Loudspeaker | Yes, with stereo speakers |
|---|---|
| 3.5mm Jack | No 32-bit/384kHz audio |
Comms
| WLAN | Wi-Fi 802.11 a/b/g/n/ac/6e/7, tri-band, Wi-Fi Direct |
|---|---|
| Bluetooth | 5.4, A2DP, LE |
| Positioning | GPS, GALILEO, GLONASS, BDS, QZSS |
| NFC | Yes |
| Radio | No |
| USB | USB Type-C 3.2, OTG |
Features
| Sensors | Fingerprint (side-mounted), accelerometer, gyro, proximity, compass, barometer Circle to Search Samsung DeX (desktop experience support) |
|---|
Battery
| Type | 4300 mAh |
|---|---|
| Charging | 25W wired, QC2.0, 50% in 30 min 15W wireless 4.5W reverse wireless |
Our Tests
| Performance | AnTuTu: 1513134 (v10) GeekBench: 7433 (v6) 3DMark: 5636 (Wild Life Extreme) |
|---|---|
| Display | 1471 nits max brightness (measured) |
| Loudspeaker | -26.1 LUFS (Good) |
| Battery | Active use score 11:52h |
Eu Label
| Energy | Class B |
|---|---|
| Battery | 42:04h endurance, 2000 cycles |
| Free Fall | Class A (210 falls) |
| Repairability | Class C |
Identifiers
| MPN | SM-F766BZKGEUB |
|---|---|
| GTIN / EAN / UPC | 8806097492153, 8806097492139, 08806097492153, 08806097492139, 8806097729075 |
