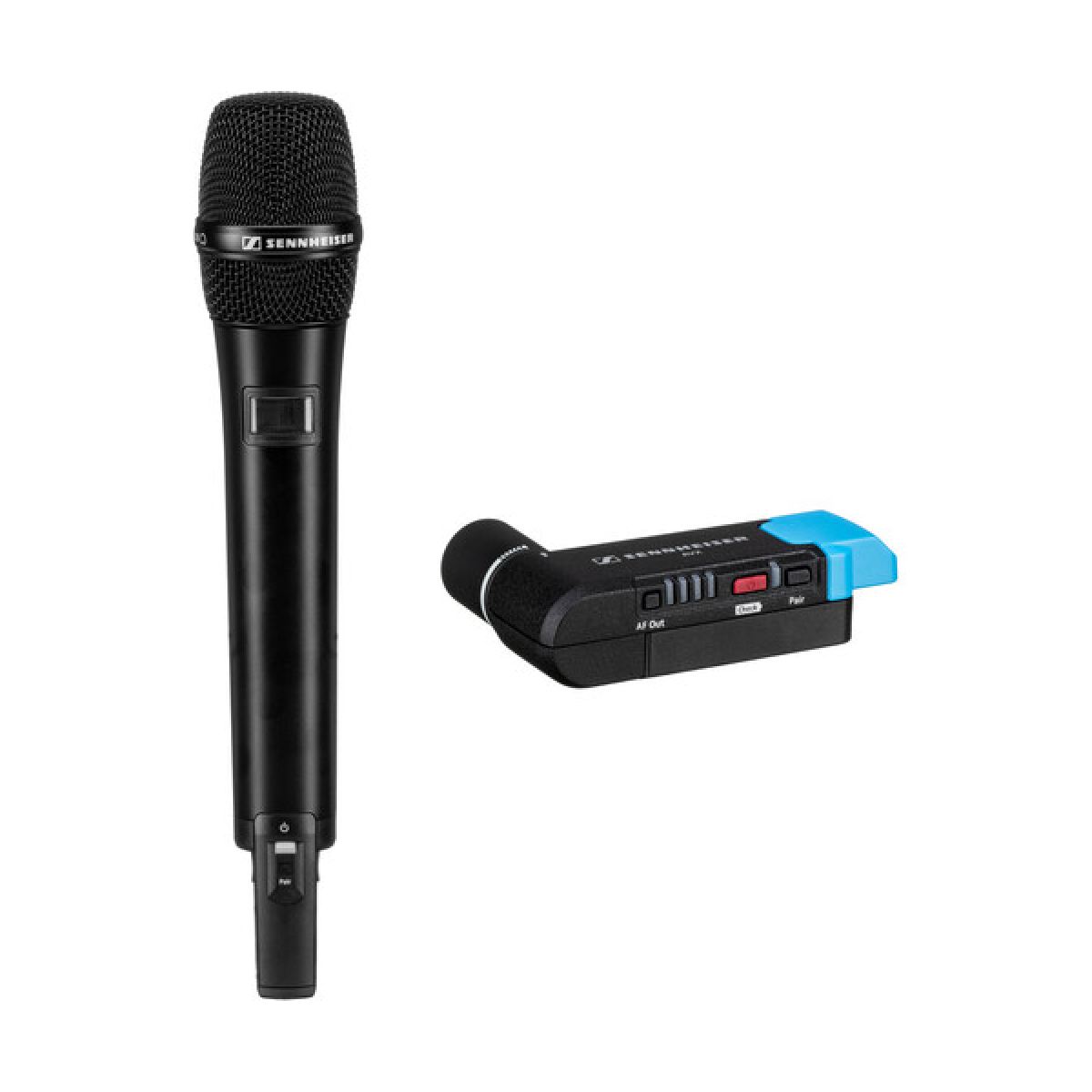

Sennheiser AVX-835 SET Digital Wireless Cardioid Handheld Microphone
Key Specs
| Wireless Technology | Digital 1.9 GHz |
|---|---|
| Diversity | Yes |
| Max Operating Range | 98' / 29.9 m (Line of Sight) |
| Receiver Type | 1x Camera-Mount |
| Number of Audio Channels | 1 |
| Included Transmitters | 1x Handheld |
| Microphone Type | 1x Handheld |
System
| Wireless Technology | Digital 1.9 GHz |
|---|---|
| Diversity | Yes |
| RF Frequency Band | 1920 to 1930 MHz |
| Max Operating Range | 98' / 29.9 m (Line of Sight) |
| Max Transmitters per Band | 8 |
| Dynamic Range | >120 dBA |
| Latency | 19 ms |
| Encryption | AES 256 |
| Built-In Recorder | No |
| Timecode Support | No |
| Mobile App Compatible | No |
Receiver
| Receiver Type | 1x Camera-Mount |
|---|---|
| Mounting Options | XLR Plug-In (with Included Hardware) |
| Antenna | 1x Fixed External (Top-Mount) |
| Number of Audio Channels | 1 |
| Audio I/O | 1x XLR 3-Pin Balanced Mic Output |
| Network I/O | No |
| Word Clock I/O | No |
| USB/Lightning Connectivity | 1x Micro-USB Female (Charging, Bus Power) |
| Frequency Response | 20 Hz to 20 kHz |
| Display | Single-LED Indicators Only |
| Power Requirements | Battery, Bus Power (USB) |
Transmitters
| Included Transmitters | 1x Handheld |
|---|---|
| RF Output Power | ≤ 250 mW (Country Specific) |
| Antenna | Fixed External |
| Input Level | Microphone |
| Audio I/O | No |
| USB I/O | 1x Micro-USB (Bus Power, Charging) |
| Muting | Mute Switch |
| Auto-Level/Gain | No |
| Frequency Response | 50 Hz to 20 kHz (Mic) |
| Display | LCD (Non-Backlit) |
Microphones
| Microphone Type | 1x Handheld |
|---|---|
| Polar Pattern | Cardioid |
| Maximum SPL | 154 dB |
| Sensitivity | 2.1 mV/Pa |
| Color | Black |
Power
| Receiver Battery Type | 1x Sennheiser Battery Pack (Included) |
|---|---|
| Receiver Battery Life | 4 Hours (Lithium Rechargeable) |
| Transmitter Battery Type | 1x Sennheiser Battery Pack (Included) |
| Transmitter Battery Life | 15 Hours (Lithium Rechargeable) |
Physical
| Environmental Resistance | No |
|---|---|
| Housing | Metal |
| Dimensions | Receiver: 0.8 x 2 x 3.2" / 21 x 51 x 81 mm Transmitter: 1.6 x 10.8" / 40 x 275 mm |
| Weight | Receiver: 3.1 oz / 87 g (with Batteries) Transmitter: 9.9 oz / 282 g (without Batteries) |
Packaging Info
| Package Weight | 1.9 lb |
|---|---|
| Box Dimensions (LxWxH) | 12.7 x 6.75 x 3" |
Identifiers
| MPN | S505853 |
|---|---|
| GTIN / EAN / UPC | 4044155086195 |
