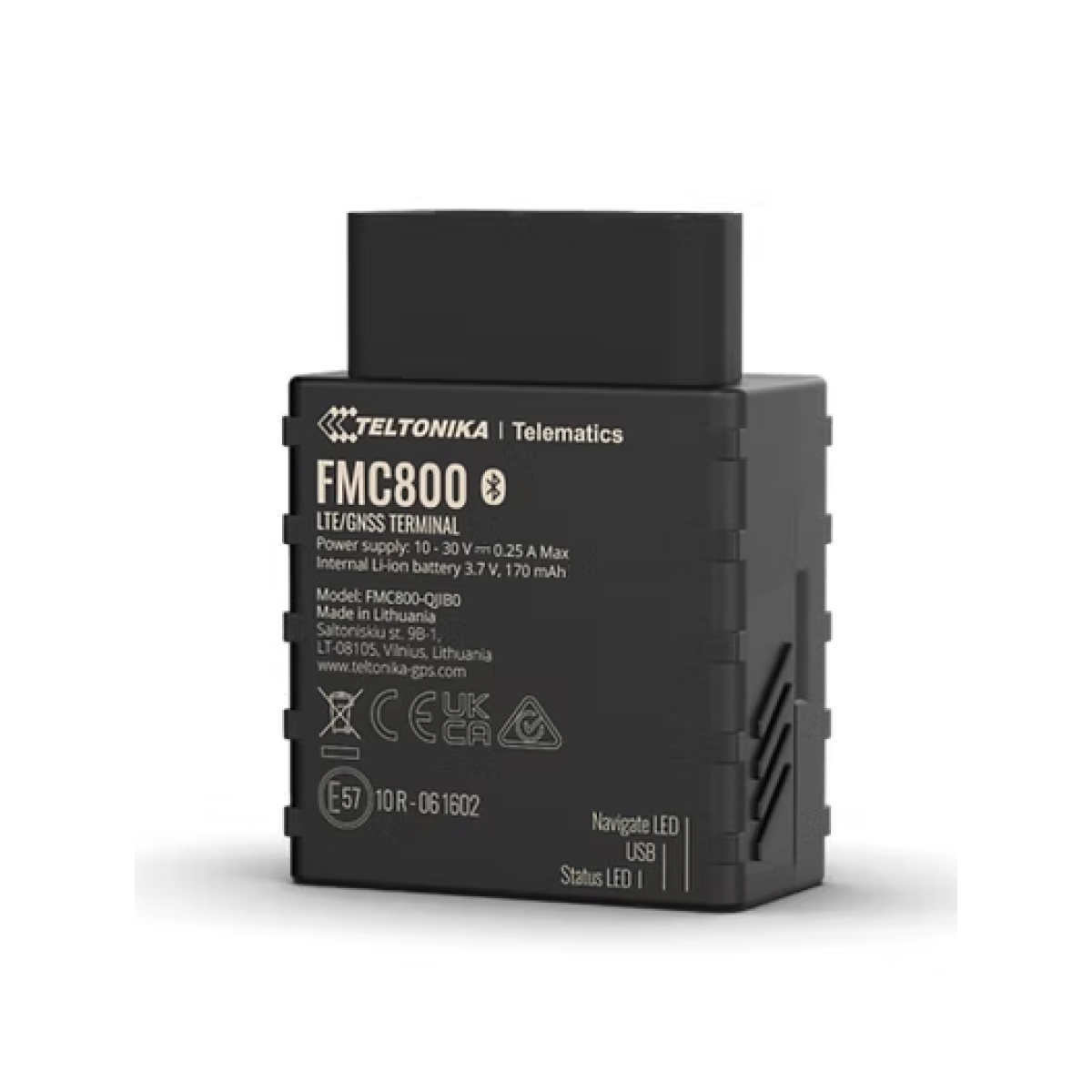

Teltonika FMC800 OBDII Plug-and-Play GPS Tracker with 4G LTE Cat 1
Connectivity & Networks
| Cellular Technology | 4G LTE Cat 1 (with 2G GSM fallback) |
|---|---|
| 4G FDD LTE Bands | B1 / B3 / B7 / B8 / B20 / B28 |
| 2G GSM Bands | B2 / B3 / B5 / B8 |
| GNSS Positioning | GPS, GLONASS, GALILEO, BEIDOU, QZSS, AGPS |
| Tracking Sensitivity | -165 dBM |
| Bluetooth Profile | Bluetooth 4.0 + LE (Low Energy) |
Power & Interface
| Connection Interface | Standard OBDII Socket |
|---|---|
| Input Voltage Range | 10 - 30 V DC |
| Internal Backup Battery | 170 mAh Li-Ion 3.7V |
| Configuration Port | Micro-USB 2.0 |
| Status Indicators | 2x LED status lights |
Hardware & Smart Scenarios
| Integrated Sensors | 3-axis Accelerometer |
|---|---|
| Internal Memory | 128MB Flash (Up to 422,400 records) |
| SIM Slot Type | Micro-SIM |
| Advanced Scenarios | Green Driving, Over Speeding, Jamming, Unplug, Towing, Crash Detection, Auto Geofence |
Physical Properties
| Dimensions (LxWxH) | 67.2 x 49.6 x 25 mm |
|---|---|
| Net Weight | 63 g |
| Ingress Protection | IP41 Rating |
| Operating Temperature | -40°C to +85°C |
Identifiers
| MPN | FMC800TP9401 |
|---|---|
| GTIN / EAN / UPC | 4779027310534 |
