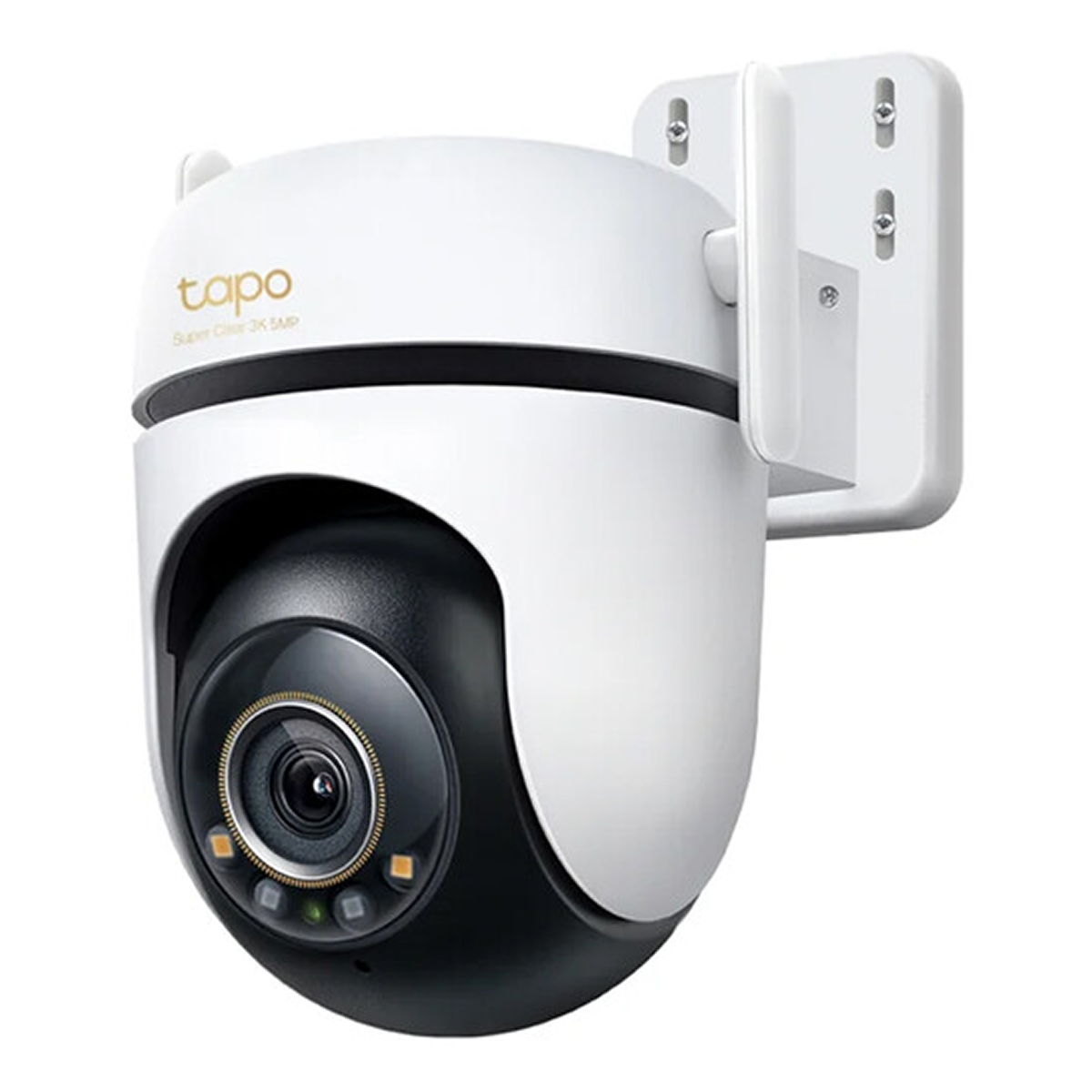

TP-Link Tapo C530WS Security Wi-Fi Camera White
Key Specs
| Image Sensor | 1/2.7"-Type |
|---|---|
| Field of View | Diagonal: 102° Horizontal: 87° Vertical: 45.5° |
| Pan/Tilt | Pan: 360° Tilt: 130° |
| Wireless | Wi-Fi 6 (802.11ax) *Built-In |
| Built-In Microphone | Yes |
| Smart Home Ecosystems | Amazon Alexa, Google Assistant |
| Power I/O | 1x DC (9VDC at 0.8 A) Output |
Imaging
| Number of Lenses | 1 |
|---|---|
| Image Sensor | 1/2.7"-Type CMOS |
| Effective Sensor Resolution | 5 Megapixel |
| IR Cut Filter | Yes |
| Day/Night | Yes |
Exposure Control
| Minimum Illumination | 0 Lux |
|---|
Lens
| Focal Length | 4mm |
|---|---|
| Field of View | Diagonal: 102° Horizontal: 87° Vertical: 45.5° |
| Maximum Aperture | f/1.6 |
Video
| Supported Protocols | Video Streaming DHCP/DNS/HTTPS/ICMP/NTP/RTSP/SSL/TLS/TCP/UDP |
|---|---|
| Max IP Streaming | H.264 via RJ45 / Wireless 2880 x 1620 up to 30.00 fps |
Control
| Pan/Tilt | Pan: 360° Tilt: 130° |
|---|
Networking
| Frequency Range | 2.4 GHz |
|---|---|
| Wireless | Wi-Fi 6 (802.11ax) *Built-In |
| Wireless Range | 492' / 150 m |
| Encryption | Yes: WPA/WPA2/WPA3 |
| Security | HTTPS |
Interface
| Media/Memory Card Slot | Single Slot: microSD (Unspecified Type) [512 GB Maximum] |
|---|---|
| Other I/O | 1x RJ45 |
| 1- or 2-Way Audio | Two-Way |
| Built-In Microphone | Yes |
| Built-In Speaker | Yes |
| Internal Storage | No |
| External Storage Options | Cloud |
System Integration
| Smart Home Ecosystems | Amazon Alexa, Google Assistant |
|---|---|
| Cloud Platform | Tapo Care (Subscription Required) |
| Analytics | Camera Sabotage/Tampering, Motion Detection, People Detection, Vehicle Detection, Virtual-Line Crossing Detection |
Sensors & Alarms
| Sensors | Motion Detection Night Vision |
|---|---|
| Sensor Range | IR: 98' / 29.9 m |
| Event Trigger | Yes |
| Event Action | Recording, Notification, Alarm |
Power
| Power I/O | 1x DC (9VDC at 0.8 A) Output |
|---|---|
| Power Consumption | 100 to 240 VAC 3.9 to 7.41 W |
Environmental
| Operating Conditions | -22 to 140°F / -30 to 60°C at 10 to 90% Humidity |
|---|---|
| Storage Conditions | -40 to 140°F / -40 to 60°C at 0 to 90% Humidity |
| Environmental Resistance | Dust/Weather/Water-Resistant (IP66) |
General
| Certifications | CE, FCC, RCM, RoHS |
|---|---|
| Illumination | 850 nm IR LEDs up to 98' / 29.9 m 2x Spotlights |
| OS Compatibility | Android/iOS |
| Dimensions (W x H x D) | 4.8 x 3.5 x 4.8" / 121.7 x 90 x 123 mm |
| Weight | 12.2 oz / 347 g (Body Only) |
Packaging Info
| Package Weight | 1.62 lb |
|---|---|
| Box Dimensions (LxWxH) | 8.2 x 6.15 x 5.8" |
Identifiers
| MPN | Tapo C530WS |
|---|---|
| GTIN / EAN / UPC | 8885020624984, 8885020624984 |
