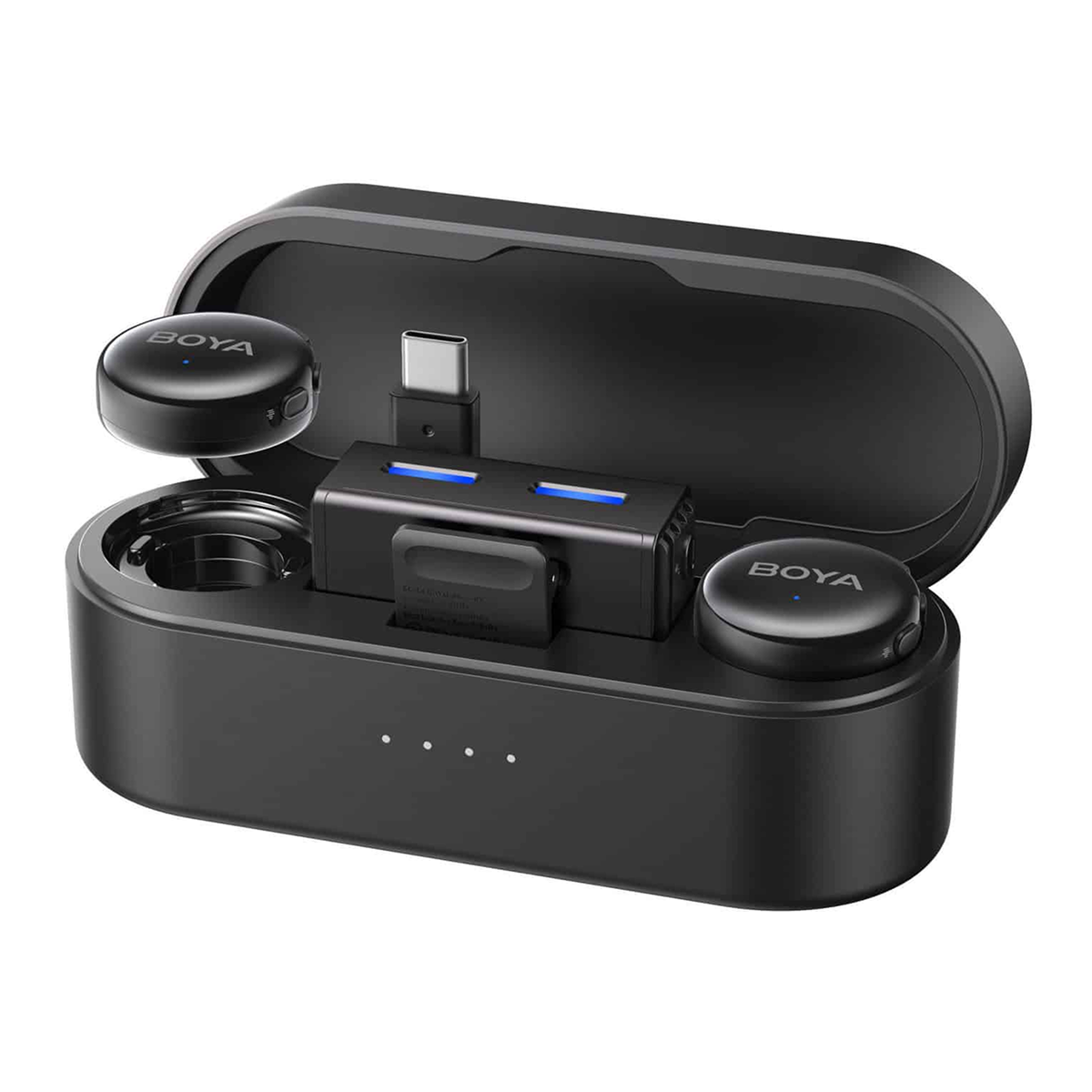

BOYA Boyalink 3-01 Wireless Microphone Type-C Black
Key Specs
| Wireless Technology | Digital 2.4 GHz |
|---|---|
| Diversity | Non-Diversity |
| Max Operating Range | 984.3' / 300 m (Line of Sight) |
| Receiver Type | 1x Camera-Mount |
| Number of Audio Channels | 2 |
| Included Transmitters | 2x Clip-On with Microphone |
| Microphone Type | 2x Built-In (Clip-On Transmitter) |
| Included Charging Case | Yes, with Integrated Battery |
System
| Wireless Technology | Digital 2.4 GHz |
|---|---|
| Diversity | Non-Diversity |
| RF Frequency Band | 2400 MHz |
| Max Operating Range | 984.3' / 300 m (Line of Sight) |
| Max Transmitters per Band | 2 |
| Built-In Recorder | No |
| Timecode Support | No |
| Mobile App Compatible | Yes: Android & iOS App Name: BOYA Central App |
Receiver
| Receiver Type | 1x Camera-Mount |
|---|---|
| Mounting Options | Shoe-Mount (with Included Hardware) USB-C Plug-In (with Included Adapter) |
| Antenna | 1x Internal PIFA |
| Number of Audio Channels | 2 |
| Audio I/O | 1x 1/8" / 3.5 mm TRS Unbalanced Output |
| USB/Lightning Connectivity | 1x USB-C Female (Audio) 1x USB-C Male (Audio) |
| Gain Range | -21 to -40 dB |
| Frequency Response | 20 Hz to 20 kHz |
| Display | Single-LED Indicators Only |
| Power Requirements | Battery |
Transmitters
| Included Transmitters | 2x Clip-On with Microphone |
|---|---|
| RF Output Power | < 10 mW |
| Antenna | Internal PIFA |
| Input Level | Microphone |
| Audio I/O | No |
| Bias/Plug-In & Phantom Power | No Bias/Plug-In Power No Phantom Support |
| USB I/O | No |
| Muting | Mute Switch |
| Gain Range | -12 -40 dB |
| Auto-Level/Gain | Yes |
| Frequency Response | 20 Hz to 20 kHz |
| Sync Method | 2.4 GHz QPSK |
| Display | No |
Microphones
| Microphone Type | 2x Built-In (Clip-On Transmitter) |
|---|---|
| Polar Pattern | Omnidirectional |
| Frequency Response | 20 Hz to 20 kHz |
| Maximum SPL | 115 dB |
| Sensitivity | -32 dB |
| Color | Black |
Power
| Receiver Battery Type | 1x Built-In Rechargeable - 240 mAh |
|---|---|
| Receiver Battery Life | 14 Hours |
| Transmitter Battery Type | 1x Built-In Rechargeable - 130 mAh |
| Transmitter Battery Life | 6 Hours |
| Battery Charging Time | 1.5 Hours |
| Included Charging Case | Yes, with Integrated Battery |
Charging Case
| Battery | 1500 mAh Rechargeable |
|---|---|
| Recharge Time | 2 Hours |
| Charging Input | USB-C |
| Input Power | 5 VDC at 2 A |
Physical
| Environmental Resistance | No |
|---|---|
| Dimensions | Case: 4.3 x 1.7 x 1.7" / 108 x 42 x 42 mm Receiver: 1.7 x 0.9 x 0.8" / 44.2 x 22 x 20.8 mm Transmitter: 1 x 0.4" / 26.1 x 10 mm (without Mount) |
| Weight | Case: 3.8 oz / 108.5 g Receiver: 0.6 oz / 16.5 g Transmitter: 0.3 oz / 9 g |
Packaging Info
| Package Weight | 0.59 lb |
|---|---|
| Box Dimensions (LxWxH) | 6.1 x 3.3 x 3" |
Identifiers
| MPN | BOYALINK-3-02 |
|---|---|
| GTIN / EAN / UPC | 6977490710747 |
